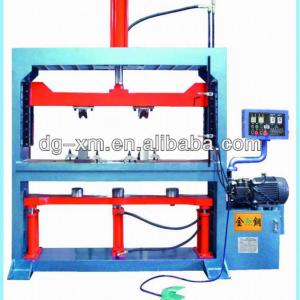

Steel press bending machine

Steel press bending machine, 1.Semi-automatic,hydraulic driver, 2.advanced,and more stable ,efficient and faster - details see: https://www.machineto.com/steel-press-bending-machine-10368584

Place of Origin:Guangdong China (Mainland)	Brand Name:kingkon	Model Number:XM-H38A	Raw material:Pipe/tube
Material:steel ,Stainless steel,copper,iron ,aluminum etc.	Extra services:Machining	Color:White,blue and yellow	Machine size:19508602600mm
Weight of machine:1900kg

contact supplier for Steel press bending machine

XM-H38A Hydraulic Press Bending Machine Ⅰ.Features. 1.It mainly fits for processing product with large benidng radius and its production rate is quiker than single head bending mahcine. 2.it can cooperation with a long tube procesing. 3.Product are widly used in beach chaies,strollers,furniture ,sports equipment and other mass production Ⅱ.Technical parameters
1. The max distance of upper oil cylinder:500mm
2.The inside diameter of upper oil cylinder:250mm
3.Hydraulic motor power:7.5HP(5.6KW)
4.Rotary speed:1440 r/min
5.Working table size: 1200×500×1000mm
6.Machine size:1950(total length)×860(total width) ×2600(total height)mm
7. The control of power supply	motor 380V solenoid valve 220V contactor 220V
8.Flow rate: 21L/min	9.Pump: PV2R1-19-F-RUU-40
10.Equipment voltage: AC 380V	11.Maxs ystem pressure: 21MPa
12.Hydraulic oil type:68# anti-wear hydraulic oil	13.Weight of machine:1900kg
