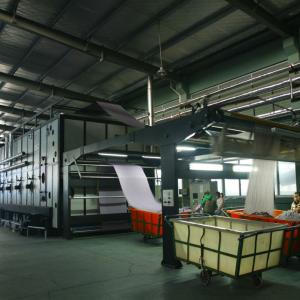

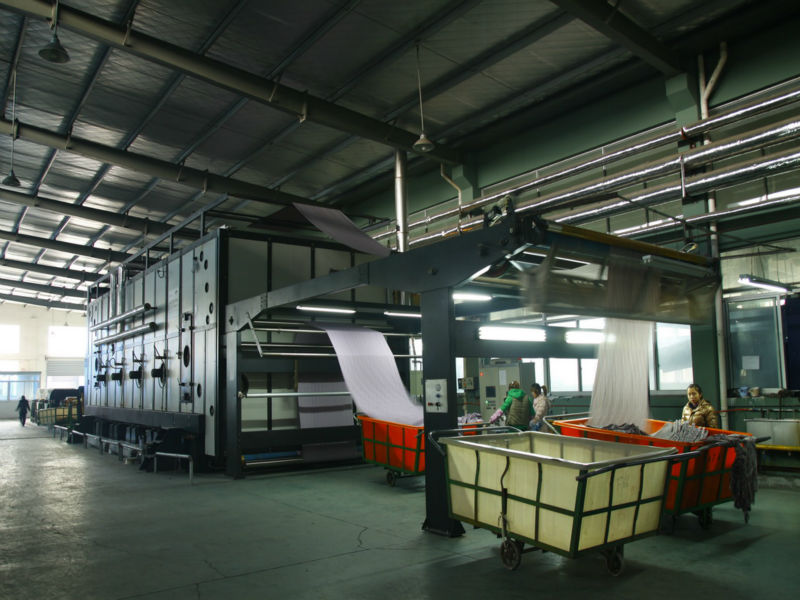

steam ager

long loop steamer with high effieiency , save energy - details see: https://www.machineto.com/steam-ager-10277634

Condition:New	Automatic Grade:Automatic	Place of Origin:Jiangsu China (Mainland)	Brand Name:Yongxin
Model Number:829	Voltage:380v	Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas

I. Equipment application

The machine suitable for ageing and color fixation of all kinds of natural fiber, synthetic fiber, chemical fiber

and its blended woven fabric, knitted fabric, nonwoven fabric and other fabric printing. It can also be used to

disperse dyestuff and baking color fixation after pigment printing.

II.Equipment process flow

Open-width fabric-input → loop → ageing → open-width doffing

III.Main technical parameters and indicators:

1. Fabric capacity: 350m

2.Machine type: left hand or right hand machine (depending on the power when facing to fabric-input)

3. Nominal width:max5m

4.Applicable textile: 50-500 g/m²all kinds of woven fabric, knitted fabric

5. The way of fabric input and output: fabric-input at up ,input and output both in front

6. Machine speed: 5 ~ 50m/min

7.Ageing time: fabric volume/machine speed

8. Outline dimension: length x width x height (mm) 19505× 5010×4600

9.Carrying heated oil (oil boiler 600000 kilocalories)

10.Applicable process: disperse,Baking at high temperature≤185°C±1

11.Loopheight: 1.5m ~ 2.5m adjustable freely

12.Driving mode: AC frequency conversion, AC servo motor

Packaging Detail:seaworth transportation packing

Delivery Detail:45 days after contract
