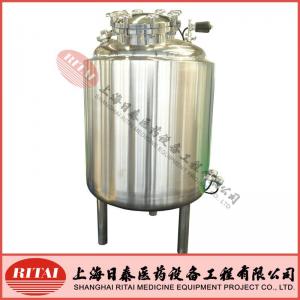

The stainless steel storage tank has two types of stainless steel tanks, vertical storage tank and horizontal storage tank. - details see: https://www.machineto.com/stainless-steel-storage-tank-for-beverage-wine-brew-and-other-liquid-10282750

Ritai is professional manufacturer for all kind of stainless steel tanks, such as mixing tank, reactors, storate tank, fermentor, bioreactor and CIP.

Ritai is the one of the biggest manufacturer for stainless steel tank in china, who has three factories in shanghai.

Application:

It is used for mixing or sotrage all kinds of liquid products in pharmaceutical, food, chemial and biological fields. such as WFI storage tank, cip tank,PW storage tank, etc.

we have different kinds of agitators

bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc...

top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc....

top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc....

top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc....

Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc....

one tank can install one agitator, if client need, one tank can install two agitator together.

Description

Product technical description

Specification: 10L~30000L

Material: SS316L or SS304

Surface finish: inside surface is Ra0.28~0.6μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.

Pressure: ATM or pressure vessel (-0.1~1Mpa)

Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation

Jacket type: dimple jacket, full jacket, or coil jacket

Insulation material: rock wool

Components can be equipped as request:

standard components: manhole or handhole, sight glass, cleaning ball

optional components:

vent filter with Pall cartridge or china brand cartridge

temp. gauge, display on the gauge directly on the vessel

temp sensor pt100, digital display on the control cabinet by instrument

temp sensor with control for heating and cooling

level gauge with digital display on the control cabinet by instrument

load cell

valves

Manufacture standard for pressure vessel: GB150-1998, ASME with U stamp or PED/23/EC with CE mark

Usage
It is used for liquid mixing and stroage and transeffering in pharmceutical , food, biological , chemical field.

.
