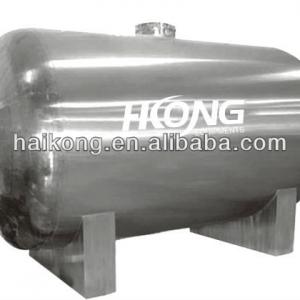

stainless steel storage tank

stainless steel air tank widely used for petrol industry chemical industry pharmacy food and etc. - details see: https://www.machineto.com/stainless-steel-storage-tank-10301003

Condition:New	Place of Origin:Shandong China (Mainland)	Brand Name:HaiKong	Model Number:From 0.1M3to 50M3
Dimension(LWH):----	Capacity:From 0.1M3 to 50M3	Weight:20KG-10000KG	After-sales Service Provided:No overseas service provided
coat:grey

contact supplier for stainless steel storage tank

Stainless steel tanks of various sizes, from 0.1 to 50 cubic meters of production; From 8to 16 kilograms / square cm for each of the vertical, horizontal stainless steel tank.

Technical Parameters of Air Tank
capacity/working pressure	Design temperature	total height	Dia.of tank	Inlet	Outlet	support		Drain valve
capacity/working pressure	°C	H1(mm)	Φ1	Inlet	Outlet	Φ2	Φ3	Drain valve
0.3/0.8	150	1730	500	DN50	DN50	Φ350	Φ20	R3/4
0.3/1.0		1730		DN50		Φ350		R3/4
0.3/1.3		1730		DN50		Φ350		R3/4
0.35/0.8	150	1990	500	DN50	DN50	Φ350	Φ20	R3/4
0.35/1.0		1990		DN50		Φ350		R3/4
0.35/1.3		1990		DN50		Φ350		R3/4
0.5/0.8	150	2080	600	DN65	DN65	Φ420	Φ20	R3/4
0.5/1.0		2080		DN65		Φ420		R3/4
0.5/1.3		2080		DN65		Φ420		R3/4
0.6/0.8	150	1910	700	DN65	DN65	Φ500	Φ20	R3/4
0.6/1.0		1910		DN65		Φ500		R3/4
0.6/1.3		1910		DN65		Φ500		R3/4
1.0/0.8	150	2285	800	DN65	DN80	Φ560	Φ24	R3/4
1.0/1.0		2285		DN65		Φ560		R3/4
1.0/1.3		2285		DN65		Φ560		R3/4
1.5/0.8	150	2280	1000	DN80	DN80	Φ700	Φ24	R3/4
1.5/1.0		2280		DN80		Φ700		R3/4
1.5/1.3		2280		DN80		Φ700		R3/4
2.0/0.8	150	2765	1000	DN80	DN80	Φ700	Φ24	R3/4
2.0/1.0		2765		DN80		Φ700		R3/4
2.0/1.3		2765		DN80		Φ700		R3/4
2.5/0.8	150	3510	1000	DN80	DN80	Φ700	Φ24	R3/4
2.5/1.0		3510		DN80		Φ700		R3/4
2.5/1.3		3510		DN80		Φ700		R3/4
3.0/0.8	150	3000	1200	DN100	DN100	Φ840	Φ24	R3/4
3.0/1.0		3000		DN100		Φ840		R3/4
3.0/1.3		3000		DN100		Φ840		R3/4
4.0/0.8	150	4000	1200	DN100	DN100	Φ840	Φ24	R3/4
4.0/1.0		4000		DN100		Φ840		R3/4
4.0/1.3		4000		DN100		Φ840		R3/4
5.0/0.8	150	3405	1500	DN125	DN125	Φ1100	Φ30	R3/4
5.0/1.0		3405		DN125		Φ1100		R3/4
5.0/1.3		3405		DN125		Φ1100		R3/4
6.0/0.8	150	3970	1500	DN125	DN125	Φ1100	Φ30	R3/4
6.0/1.0		3970		DN125		Φ1100		R3/4
6.0/1.3		3970		DN125		Φ1100		R3/4
8.0/0.8	150	4650	1600	DN125	DN125	Φ1200	Φ30	R3/4
8.0/1.0	150	4650	1600	DN125	DN125	Φ1200	Φ30	R3/4
10/0.8	150	4565	1800	DN150	DN150	Φ1350	Φ30	R3/4
10/1.0	150	4565	1800	DN150	DN150	Φ1350	Φ30	R3/4
