1. High Presure, 2. Vertical or tilting, stainless steel, 3. The cover can be rotated open automatically - details see: https://www.machineto.com/stainless-steel-high-pressure-cooking-pot-10003476

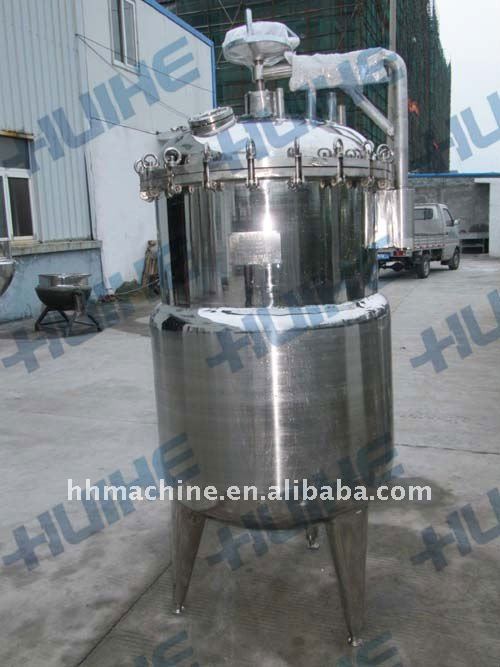

This High Pressure Cooking Kettle is with high pressure which can make the product cooked very soft. It is suitable for the cooking of pork, beaf, bone soup etc. It is made of 4 layers: inner layer, jacketed layer, insulating layer and cladding layer which are all made of SUS304. The heat transfer oil or water is input to the jacketed layer to heat the inner layer indirectly, which can make the processed product heated very evenly. The cover is connected with the kettle body by good flange which can resist high pressure and the cover also can rotate when opening.

Technical parameter

Type Metric volume(L) Dimension Diameter¡Ádeepth(cm) Form Working air pressrue(Mpa) Agitation speed(r/min) Max tilt angle(Degree) Pipe diamater of inlet and outlet(inch) Power of motor(kw) G50-I 50 52*40 Ttlting 0.3/0.5 90 1/2" G50-II Agiltaion 36 90 0.5 G100-I 100 66.4*48.2 Ttlting 0.3/0.5 90 3/4" G100-II Agiltaion 36 90 0.5 G100-III Fixing 90 G200-I 200 85*57.5 Ttlting 0.3/0.5 90 3/4" G200-II Agiltaion 36 90 0.5 G200-III Fixing 90 G300-I 300 100*65 Ttlting 0.3/0.5 90 3/4" G300-II Agiltaion 36 90 0.5 G300-III Fixing 90 G400-I 400 100*75 Ttlting 0.3/0.5 90 3/4" G400-II Agiltaion 36 90 0.5 G400-III Fixing 90 G500-I 500 110*85 Ttlting 0.3/0.5 90 3/4" G500-II Agiltaion 36 90 0.5 G500-III Fixing 90 G600-I 600 120*95 Ttlting 0.3/0.5 90 3/4" G600-II Agiltaion 36 90 0.5 G600-III Fixing 90
