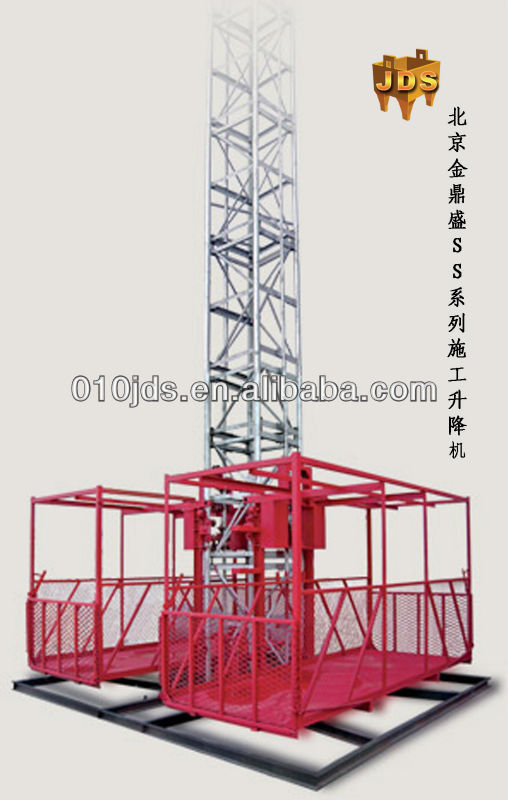

SS100/100 material hoist

Material hoist is the vertical lifting of materials of special machinery - details see: https://www.machineto.com/ss100-100-material-hoist-10097443
Condition:NewPlace of Origin:China (Mainland)Brand Name:JDSModel Number:SS100/100
Usage:Construction HoistPower Source:ElectricSling Type:CableMaximum Lifting Weight:1000 Kgs
Maximum Lifting Height:60 meterLift Speed:23.5 m/minCertification:N/AWarranty:12 months after sale
After-sales Service Provided:No overseas service providedColor:red or yellow
SS100/100 material hoist
contact supplier for SS100/100 material hoist


Item No.ItemSpecification
1Model NumberSS100/100
2Place of OriginBeijing, China ( Mainland)
3Brand NameJDS
4Basic Installation Height24 M
5Attachment Installation Height60 M
6Rated Lifting Capacity100/100 Kg
7Lifting Speed23.5 m/min
8Cage Dimension (L*W*H)2.8*1.5*1.9 m*m*m
9Sectional Dimension of Bracket0.8*0.8 m*m
10Motor PowerSingle-cage 11KW; Double-cage:22 KW
11Steel Rope Model6*37+1-12-170-Right
12Steel Rope Length(Typical)150 m
13Total weight( Single-cage at 30m)3860 Kg
14Total weight( Double-cage at 30m)5280 Kg
SS100/100 material hoist
Packaging Detail:1 set/40' Container
Delivery Detail:20 days after receipt of down payment
