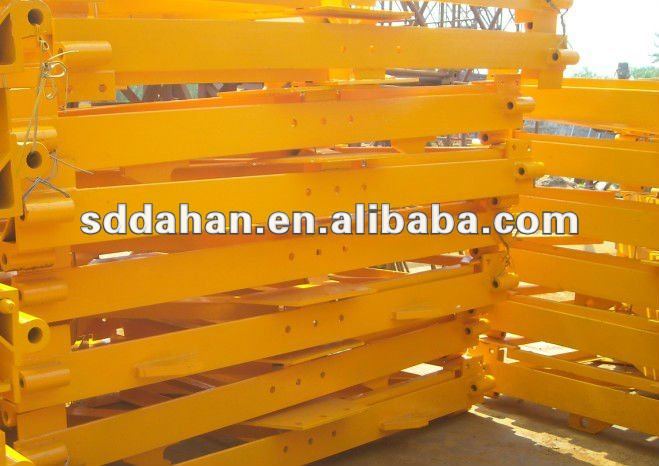

Split mast section QTZ50A(4810) tower crane

QTZ50(4810)tower crane is a new type of hoisting transportation machinery - details see: https://www.machineto.com/split-mast-section-qtz50a-4810-tower-crane-10103939
Feature:Tower CraneCondition:NewApplication:-40~+40 degreeRated Loading Capacity:4t
Rated Lifting Moment:500kn.mMax. Lifting Load:4tMax. Lifting Height:120mSpan:48m
Place of Origin:Shandong China (Mainland)Brand Name:DAHANModel Number:QTZ50(4810)
Split mast section QTZ50A(4810) tower crane
contact supplier for Split mast section QTZ50A(4810) tower crane


QTZ50A(4810)

Tower crane technical data table

rate load moment

540KN·m

working radius

3m48m

Max road capacity

4t

Max radius road capacity

1.0t

hoisting high

rate

fixed type

Attached type

α2

35.5m

120m

α4

35.5m

60m

hoisting

winch

rate

α2

α4

(m/min) speed70

35

935

17.5

4.5
Road capacity1t

2t

2t2t

4t

4t
(kW) power

15/15/4

Derricking winch

(m/min) speed

38.6/25.2

(kW) power

2.2/1.5

Slewing gear

(r/min) speed

0.62

(kW) power

3.7

Jacking winch

(MPa) working pressure

20

(m/min) speed

0.4

(kW) power

4

Total power

24.9kw

Mast section weight

618kg

Mast section quantity

14 subject to actual shipment

Chassis type

big cross beem

t

Balance weight

t

Whole self weight

23(not include balance weight)

m

Max slewing madius

49

m

Tail slewing madius

13

Temperature of working environment

-20~+40

Split mast section QTZ50A(4810) tower crane
Packaging Detail:40HQ containers
Delivery Detail:10 days
