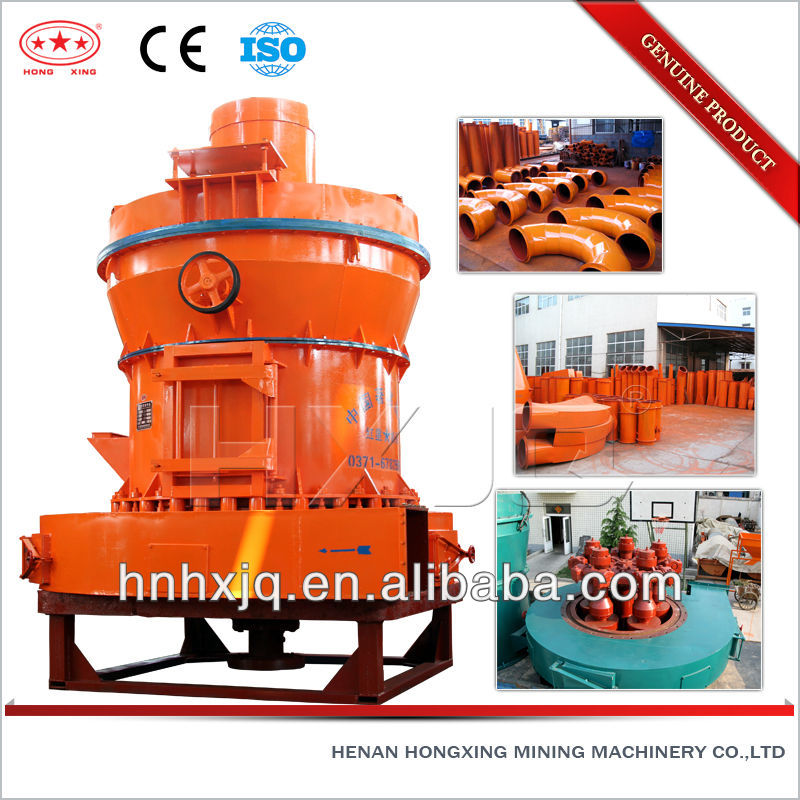

Sold to more than 30 countries High strength pulverizer mill

High strength pulverizer mill:, 1.Lower power consumption, 2.Reliable working condition, 3.High efficiency, 4.Stable processing - details see: https://www.machineto.com/sold-to-more-than-30-countries-high-strength-pulverizer-mill-10314110

Condition:New	Type:pulverizer mill,Pulverizer Mill	Motor Type:AC Motor	Capacity(t/h):refer to specification
Place of Origin:Henan China (Mainland)	Brand Name:Hongxing	Model Number:High-strength type	After-sales Service Provided:Engineers available to service machinery overseas
Name:High strength pulverizer mill	Certificate:ISO9001:2008	Application:limestone,ceramic etc	Warranty:1 year

Sold to more than 30 countries High strength pulverizer mill

contact supplier for Sold to more than 30 countries High strength pulverizer mill

High strength pulverizer millapplications:

Raymond mill machine is used for grinding barite, limestone, kaolin, ceramic and other materials below a hardness of 9.3. Used for non-inflammable and non-explosive materials in the mining, metallurgical, industrial, chemical engineering and building material industries, this equipment is suitable for fine powder generation and processing. The product size is adjustable between 80 meshes and 325 meshes. It is possible to produce 30 - 80 mesh coarse powder through a special device in the machine.
High strength pulverizer mill functions:
In the main frame, a 100 - 1,500kg powered pressure spring is fixed to the roller suspender. After the grinder is put into effect, the roller rotates around the main shaft, and rolls closely against the ring pressed by the high pressure spring and centrifugal force. With a rolling pressure ratio that is 1.2 times higher than that of the Raymond grinder under the same power conditions, production output is raised substantially.
When a certain degree of roller and ring wear occurs, it is recommended to adjust the length of the spring to maintain the constant pressure between the roller and the ring and maintain stable output.

High strength pulverizer specification:

Parameter Type	High-strength96	High-strength95	High-strength93	High-strength86
Feeding size (mm)	≤25	≤25	≤25	≤20
Size of finished product (mm)	0.125-0.033	0.125-0.033	0.613-0.033	0.125-0.033
Shift output of different material fineness (t)	4-55	3-38	3.5-40	3-33
Rotate speed of central shart (r/min)	130	130	160	160
Diameter of pulverizing ring (mm)	1073	1050	1006	907.5
Height of pulverizing roller (mm)	320	310	300	270
Height of pulverizing roller (mm)	160	170	160	150
Main motor	Y225m-4-45 Y225m-4-37	Y225s-4-37	Y225s-8-30	Y225s-8-22
Fan motor	Y200I-4-37	Y200L-4-30	Y180m-2-22	Y160E-4-15
Analyzer motor	Yc120-4A-5.5	Yc122-4A-5.5	Y112m-6-3	Y112m-6-2.2

Technical parameters are subject to change without notice.
