Small Freeze Dryer, Lyophilizer, Vacuum degrees: < 20 Pa, Lyophilized area: 0.07 m2, Material on plate: 0.7 L - details see: https://www.machineto.com/small-freeze-dryer-lyophilizer-fd-1d-50-10292562

Product description:

Vacuum freeze-drying technology, hereinafter referred to as the lyophilization, also called sublimation drying. Widely used in medicine, biological products, chemical and food industry. Lyophilization is very applicable tothermosensitivematerial such as antibiotic, vaccines, blood products, enzyme hormone and other biological tissue.

Strong Point: it is based on FD-1C-50, the advantage is it is be able to cap the vials by shortening the distance of trays.

Main features:

- Desk type design, compact, save space..

- Good appearance,ergonomically Designed, easy to operate.

- Imported fully enclosed compressor, efficient and reliable, low noise.

- Big open cold-trap, with function that sample frozen in advance.

- The material of cold-trap is stainless steel, no coiled tube inside, bright, clean and corrosion resistance.

- Patent design for draft tube, improve cold-trap’s effective area, rapid freeze-drying.

- Imported gas-charging valve, be able to charge dry nitrogen or inert gases.

- Transparent Acrylic Drum drying chamber for user observing the drying process.

- Vacuum interface meets international standard, be able to connect with variety of vacuum pump.

- Digital display parameters include vacuum, condenser temperature

- Display of sample temperature (optional).

***You'd better buy a swivel freezing device, unless you have other solution.

Technical parameters:

Condensing temp.:-50°C

Vacuum degrees: < 20 Pa

Lyophilized area: 0.07 m²

Capacity of material tray: 0.7 L

Water chatching ability: 3 kg / 24 h

Tray: Φ 180mm x 3 layers

Rated Power: 220V 50 Hz 850 W

Host size: 380 * 600 * 345 mm

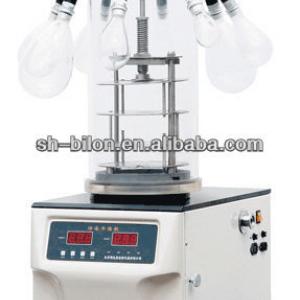

Small Freeze Dryer/ lyophilizer FD-1D-50

All above instrument parameters for reference purposes only, if the technology changes without further notice, please understand
