SJSZ Series 16-32mm Electric PVC pipe making machine

SJSZ Series 16-32mm Electric PVC pipe making machine, 1.used for water and gas supply pipe, 2.good quality,low cost, 3.CE - details see: https://www.machineto.com/sjsz-series-16-32mm-electric-pvc-pipe-making-machine-10081625

Condition:New	Type:Pipe Production Line	Pipe Material:PVC	Application:Energy Supply Pipe
Production Capacity:180-280kg/h	Place of Origin:Shandong China (Mainland)	Brand Name:DEERMA	Model Number:SJSZ65/132
Voltage:380V 50HZ	Power(W):45kw	Dimension(LWH):30x1.8x2m	Weight:3T
Certification:CE/ISO9001/SGS	Warranty:12months	After-sales Service Provided:Engineers available to service machinery overseas	Model Name:SJSZ Series 16-32mm Electric PVC pipe making machine
Processed Method:extruding machine	Main Raw Material:PVC	Product Type:plastic pipe	Pipe Diamter:16mm-160mm
Multilayer Structure:one layer/three layers	Screw Design:single screw extruder	Automatic Grade:High	Inveter:ABB
Contactor:Siemens

SJSZ Series 16-32mm ElectricPVCpipemakingmachine

High efficiency twin screw extruder.
It can produce pvc pipe for hot &cold water,electrical threading pipe..
The diamater is 16mm-160mm
non-toxic,withstand voltage,corrosion resistance

Name	Value
Brand	DEERMA PVC pipe extrusion line/pvc pipe making machine
Model	SJSZ 65/132
Raw Materials	PVC resign
Voltage	380V/3P/50HZ
Motor power	45KW
Extrusion output	180-280 KGS
Place of Origin	China
Year	2012
Certification	ISO9001, CE,SGS
Final productspecification	with the diameter 16-160mm
Production Capacity	15 Sets/ per Month
Warranty	12 Month

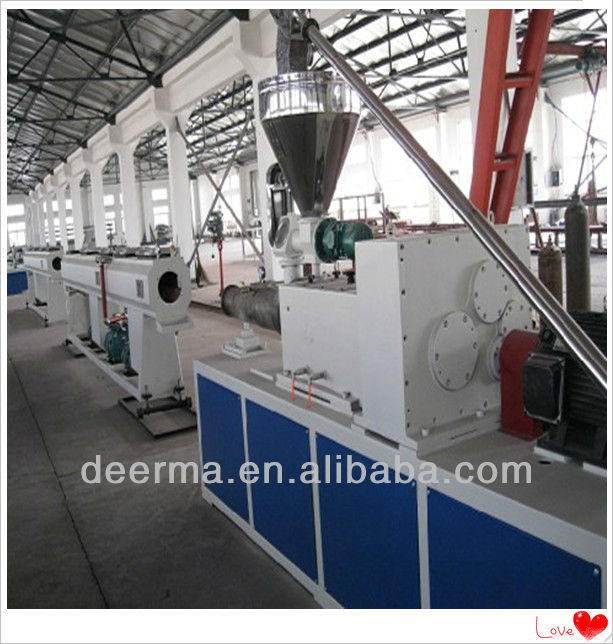

Production Line

Extruder

Mould

Cooling tank

Tractor

Cutter

Stacker

Application

pvc pipes are used widely for hot&cold water,electrical threading pipe and so on.

Shipping

From Qingdao port by Sea

Payment

T/T: 30% TT in advance,balance upon pvc pipe machinery manufacturingfinished
TT+L/C:30%TT,70% L/C at sight.

Certification

Packing

After inspection the complete machine line are packed in stretch film and then carefully packed in wooden box.

Services

1.Equipment Installation

After the arrival of pvc foam board machine to the buyer’s country,seller will send engineer to the buyer’s factory in 15days to help install the machine line,and train the workers.

2.Equipment Warranty

Our company(Qingdao Deerma Plastic Machinery Co.,Ltd) would like to promise the good quality with 12months.During the warranty,no purposely and artificially damage,we will maintain or replace for free.After the warranty,if buyer need to replace the worn part,only pay the cost price,supply lifetime.

NOTE:Just tell us what is your request, we believe our machine could meet your request!!!

About US

QINGDAO DEERMA PLASTIC MACHINERY CO.,LTD with its research center has invested heavily in technical innovation to create new manchines. They have devoted themselves to researching the international markets to meet the needs and pride themselves with the ability to introduce new and different technology. All research and development, design, and production is now all done in house
