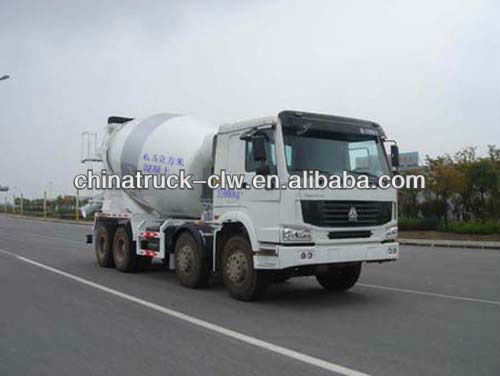

sinotuck howo 12 wheels mixer truck 12cbm for sales

sinotuck howo 12 wheels mixer truck 12cbm for sales, 1.chassis:howo, 2.8-15 cube meters, 3.let-in 3m3/minute, let-out:1.2m3/min - details see: https://www.machineto.com/sinotuck-howo-12-wheels-mixer-truck-12cbm-for-sales-10094834
Condition:NewPlace of Origin:HUB,Hubei, China (Mainland) China (Mainland)Brand Name:clw,CLWModel Number:CLW
Weight:16850Dimension(L*W*H):10360*2500*3980Power(W):196-273Certification:ISO.3C
Emission Standard:Euro 2Fuel Type:DieselTransmission Type:Manual
sinotuck howo 12 wheels mixer truck 12cbm for sales
contact supplier for sinotuck howo 12 wheels mixer truck 12cbm for sales


sinotuck howo 12 wheels mixer truck 12cbm for sales

Italian speed reducer, hydraulic pump and hydraulic motor; changzhou or wuxi radiator.tank material:16MnQ345

Equiped with control system in cabin, so could be operated inside or outside of the cabin.

Water supplying system could supply water and wash the inner body.

material let-in:3m3/minute, let-out:2m3/minute; rate of rest<1%; speed of leaf: 20 round/minute

Main information

Product Name

Sinotruk howo 8x4 mixer truck

Product Model

Howo

Chassis model

howo

Payload

30000-40000kg

Curb weight

16850

Drive Model

8x4

Drive Type

Left-hand

Vehicle Body Color

Red/White/Green(optional)

Engine

BrandWeichai
Model 1WP615 serial 266hp

6 cylinder in-line with water cooling & inter-cooling, direct-injected technology

Displacement(L)9.726L

Max.Power(kW)196

Rated power Rev(RPW)2200

Maximum Torque(N*m)/Rev(r/min)1100/1200~1400

Model 2300hp
Model 3336hp
Model 4WP615 serial 371hp

6 cylinder in-line with water cooling & inter-cooling, direct-injected technology

Displacement(L)9.726L

Max.Power(kW)273

Rated power Rev(RPW)2200

Maximum Torque(N*m)/Rev(r/min)1500/1100~1600

Emission StandardEuro II
ClutchModelΦ430 diaphragm spring

Transmission

BrandSinotuck
ModelHW15710 (10 forward, 2 reverse, manual)

Rear Axle(drive axle)-Model

HC16

Front Axle-Model

HF9

Cabin type

HW76

Cabin

With A/C, Radio, Bunk

Steering System

ZF8098

Wheelbase (mm)

1800+3200+1350

Wheel/Tire

TypeNylon tire
Model12.00-20
Tire number12+1
DimensionsOverall (mm)10360×2500×3980
(L×W×H)Body interior (mm)8-15cbm

Front overhang/Rear overhang(mm)

1500/2510

Approach/Departure Angle(°)

16/20

Max. Speed (km/h)

90

Concrete mixer truck standard configuration technician information (8-15cbm)

If you have any need,pls tell me.

Mixer drum parameter

Tanker Material:16MnQ345
Filling speed (M3/min)≥3
Unloading speed (M3/min)≥ 1.2
Discharge reside rat( %)≤ 0.5
Mixer drum rotation speed(rpm) 0~12

Driving system

Reducer:Italy Italy PMP
Hydraulic pump: Italy PMP
Hydraulic motor: Italy PMP
Heat device :changzhou or wuxi (made in china)

Water supply system

Tank volume:400L
Air pressure water supply
Operating systemModel:linkage operation

DongFeng — Hubei ChengLi Special Automobile Co. ,LTD

Add: South Suburb ChengLi Automobile Industry Park, Suizhou City, Hubei Province, China.

Foreign trade manager :Emma Zhu

mobile: 0086-13872887386

Tel: 0086-722-3801005

Fax: 0086-722-3801222

sinotuck howo 12 wheels mixer truck 12cbm for sales
Packaging Detail:nuds covered thth wax , can be carried by RORO ship
Delivery Detail:10-15days
