silicone sex toy making machine,vertical 130T, 1.high efficiency, 2.more energy-efficient, 3.save more cost of production - details see: https://www.machineto.com/silicone-sex-toy-machine-sex-toy-making-machine-lsr-machine-for-sex-toy-10339511

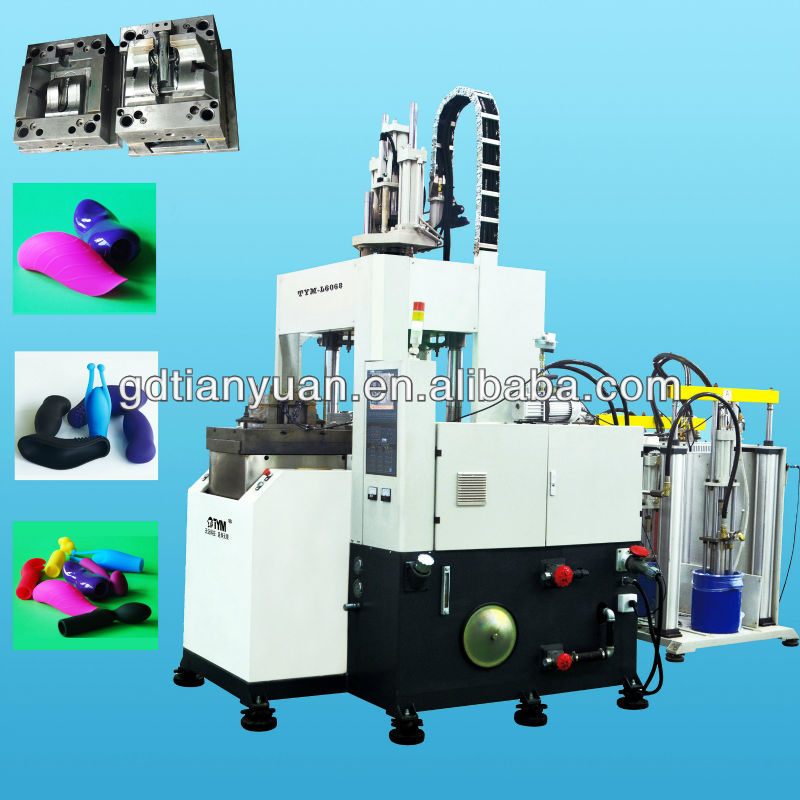

silicone dildos making machine --TYM-L5058 Vertical liquid silicone rubber injection molding machine

Specialization and integration, more efficient, more energy-efficient, save more cost of production.

The vertical LSR machine for the applicable scope:

1) Liquid silicone products, which can with the insert, as like the plastic part, steel part etc. As sample: silicone diving mask, electric silicone drum Stick, silicone handle, silicone vibrators etc..

2) Liquid silicone medical part,as like the capsule,laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.

3) Silicone high-voltage cable accessories,

4) Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.

5)Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.

Mechanical Characteristics for TYM-L5058

TYM-L5058 Vertical LSR injection molding machine
Injection Unit
Shot Volume	250 g
Injection Rate	30 g/s
Injection Pressure	19.6 T
Clamping Unit
Clamping Force	130 T
Opening Stroke	150-550 mm
Tie-Bars Pace	500*580 mm
Ejection Force	7.8 T
Ejection Stroke	150 mm
Others
Pump Pressure	21 Mpa
Motor Power	7.5 KW
Heater Power	9 KW
Mould Orientation Ring Diameter	Φ 100 mm
Machine Weight	3.8 T
Machine Dimension	1.7*2.1*3.0 m

Our TYM machine features

1) Full range of permanent magnet synchronous high response servo motors, quick response time of hydraulic. The flow of power’s output is as same as the flow of executive, no high-pressure throttling losses.

2) Static mixer can mix the A and B component LSR material very adequately, which can supply better quality assurance for the LSR product producing.

3) Excellent-quality oil pump, proportional valve, magnetic valve from world famous brand, which can guarantee excellent control on the hydraulic function.

4) Brand new TYM series controller, parameterized settings, multigroup electronic ruler to monitor the execution on every action, which can guarantee the reliability, stability and accuracy of the machine’s operation.

5) Self-research direct pressure injection barrel, which is more suitable for the moulding process of the LSR material.

6) Self- research full stainless steel pumping unit and ration pump, which can guarantee high accurate proportion of 1:1(A:B) to feed the material.

7) Pecise cold runner LSR mould, which can make the LSR product producing with higher-quality, higher efficiency, longer life, save more production cost.

We can make the LSR injection mould, supply the whole set solution of LSR injection molding machine with high-performance:

Guangzhou Tianyuan Silicone Rubber Machine Co., Ltd is a well- know domestic company which specializes in researching and developing TYM Liquid Silicone Rubber (LSR) Injection Molding Machine. The major products includes vertical LSR injection molding machine, horizontal LSR injection molding machine, LSR feeder machine, as well as the double-color LSR injection molding machine, especially the double-color LSR machine is the first one in China which had been research and developing by our company in 2011.

Our TYM has ready got the ISO-9001:2008 international approvals, CE certificate for the LSR machine.

Our TYM LSR injection molding machine is widely used in medical industry, infant industry, electronic industry, commodity industry and the solar power industry which is regarded as the current Sun Rising industry, and so on.

Our Ideal Of Management

We have been in obedience to the business concept that “clients’ development is our company’s development, our company’s development is the staffs’ development”. Mutual reciprocity and mutual benefit, making progress hand in hand is our tireless pursuit, we continue to try our best to improve our quality and service for you, and look forward to cooperation with you all the time!

There are many different models of LSR machine to reference, you can choose the best suitable machine to produce your LSR products:
