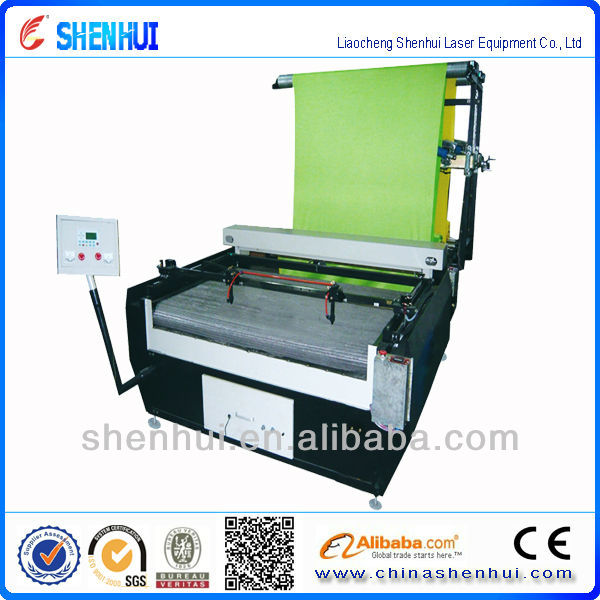

ShenHui automatic laser colth cutting machine
| Place of Origin:Shandong China (Mainland) | Brand Name:ShenHui | Model Number:G231913 | laser power:40w-150w |
| locating precision:<0.01mm | package:plywood case | working area:1500*1200mm | max moving speed:1000mm/s |
| Control configuration:DSP | Worktable:Honey comb worktable/aluminium knife/steel nail | Cooling way:Water cooling and protection system |
ShenHui automatic laser colth cutting machien
1.For Middle East professional design
2.High precision with reasonable price
3.Human design strong features and easy to use
4.CE&ISO9001&FDA certification
5.Perfect after-sales service
Certification:
1: Applicable materials:
Woodenboard , acrylics, plexiglass, rubber, platics ,bamboo product, density board,food packaging, air model, building mpackaging, air model, building models and other non-metal material
2: Applicable industry:
This machine is suitable to professional user for cutting performance in template, package, advertisementmodel model ,building upholster ,fitment and other industries.
3: Technical parameters:
| Laser power: | 80W/100W120W/150W(optional) |
| Laser type: | Hermetic CO2 glass tube |
| Power supply | AC220±10% smn;10% 50HZ/AC110±10 %50HZ |
| Working area: | 1500mmX1200mm |
| Max moving speed: | 1000mm/s |
| Worktable: | Honey comb worktable/aluminium knife/steel nail(optional) |
| Locating precision: | <0.01mm |
| Min shaping character: | Character:3x3mm,letter:2x2mm |
| Operating temperature: | 5oC-35oC |
| Resolution ratio: | 4500dpi |
| Control configuration: | DSP |
| Data transfer interface: | USB(offline) |
| System environment: | WINDOWS 2000/WINDOWS XP |
| Cooling way: | Water cooling and protection system |
| Graphic format supported: | The file which CorelDraw,Photoshop,AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG, DXP,PAT,CDT,CLK,DEX,CSL,CMX="left">DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG, SVGZ,PCT,FMV,GEM,CMX) |
| Compatible software: | CorelDraw, AutoCAD |
| Cutting thickness: | 0-25mm/35mm(depends on different material) |
| Color separation: | Separation of cutting up to 256 colors |
| Sloping engraving: | Yes, slope can be designed discretionarily |
| Cuts off the water supply the protection: | yes |
| Net weight: | 500kg |
| Machine dimension: | 2700x1380x1000(mm) |
| Optional parts: | High-grade cooling system imported focus lens double-head cylinder rotary attachment irregular rotary attachment servo motor/red dot |
| Packaging Detail:plywoodDamageable Fragile Glass Handle With Case |
| Delivery Detail:about 30 days |
