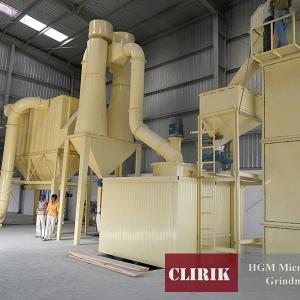

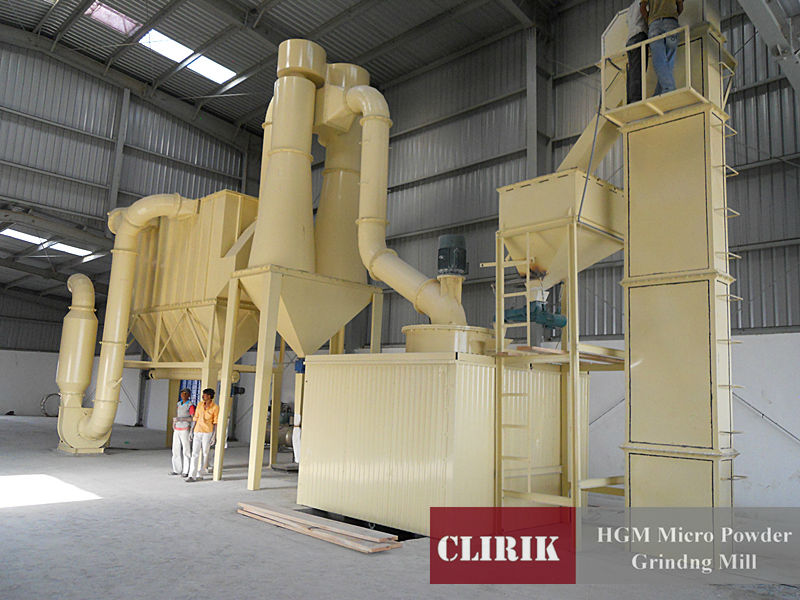

Shanghai Manufacturer of Stone Powder Grinding mill for Coating

Stone Powder Grinding mill, 1,High Efficiency, 2,Low energy consumption, 3,High fineness, 4 Flexible adjustment - details see: https://www.machineto.com/shanghai-manufacturer-of-stone-powder-grinding-mill-for-coating-10314590

Condition:New	Type:Roller mill	Motor Type:AC Motor	Power(W):145
Capacity(t/h):0.4-12,0.5-4.5/0.6-6.5/0.7-7/1-8.5/1.5-12	Place of Origin:Shanghai China (Mainland)	Brand Name:Clirik	Model Number:HGM
Dimension(LWH):14.74.87.2	Certification:CE	Warranty:one year	After-sales Service Provided:Engineers available to service machinery overseas
Ring Diameter(layer):800/930/1035/1300	Ring Number(layer):3/3-4/3/4	Rollor Number(piece):21/24-32/34-36/40-44	Main Shaft Speed(r.p.m):230-240/200-220/180-200/135-155
Input Size(mm):Equal or Less than 20	inished Size(um/mesh):5-47(325-2500)

Shanghai Manufacturer of Stone Powder Grinding mill

Features of Stone Powder Grinding mill

High Efficiency

Under the same finished final size and the same motor power, the capacity of micro powder grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.

Long lifecycle of spare parts

The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.

Fine Powder Pulverizing Mill of High Fineness that Hot Selling in 2012

High safety and reliability

As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.

High fineness, flexible adjustment

The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.

Environment-friendly

The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.

Advanced intelligent speed control device

Convenient adjusting, more uniform particle size.

Application of Stone Powder Grinding mill

HGM Series Micro Powder Grinding Mill is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite,fluorite,rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.

Main Specification of Stone Powder Grinding mill

Model	HGM80	HGM90	HGM100	HGM100A	HGM125
Ring Diameter(mm)	800	930	1035	1035	1300
Ring Number(layer)	3	3-4	3	4	4
Roller Number (piece)	21	24-32	27	34-36	40-44
Main Shaft Speed (r.p.m.)	230-240	200-220	180-200	180-200	135-155
Input Size(mm)	≤20
Finished Size (μm/mesh)	5-47 (325-2500)
Capacity (t/h)	0.5-4.5	0.6-6.5	0.7-7	0.8 -8.5	0.9-12
Overall Dimension (LWH, m)	13.9x4x6.2	14.7x4.8x7.2	18x4.6x8.6	18x4.6x8.6	14x9x10.25
Motor Power(KW)	145-165	175-192	263	263	378-408

Note: Any changes of technical data shall not be prior advised.

Table 2:

Installed power specification for the whole set equipment

Unit:KW	HGM80	HGM90	HGM100	HGM100A	HGM125
Main unit	55	2-37	110		160
Classifier	18.5	22	37		45
Blower	45	55	75		2-55
Crusher	11	11/18.5	18.5		18.5
Bucket elevator	3	3	3		4
Spiral Conveyor	3	3	3		2-4
Discharging valve	2-0.75	2-0.75	3-0.75		4-0.75
Air compressor	7.5	15	15		2-15

Remarks: For the data with prefix such as “2-xx”, it means there are two motors configured for one item. For example, discharging valve, HGM80 with configuration 2-0.75, it means there are 2 pieces of 0.75KW motors installed with discharging valve.

The packing and loading of products:

Our clients and products:

Other products of our company:

The brief introduction of our company:

a/ We have manufactured the HGM series,YGM series and crusher series for more than 10 years,which have been widely soldin Eastern Eurpe,Middle East,Africa,South Asia,Southeast Asia,Oceania,and America etc.

b/ We are the only manufacturer in Shanghai who can make the fineness reached 5 micron,high efficiency,longlife time warranty period.

Our company and workshop:

The certification of our products:

Part of successful case:

We selling concept:

We will do business with every clients seriously and hope you will inspect our company,We will get you by car in 30 minutes when you off the airplane in Pudong air port and show you around our plant.

We will give you best quality ,compatitive price,best service, for we believe our faith will get your trust.

Welcome to Shanghai Clirik Machinery Co., Ltd.
