electric Screed powered by electric motor, provides uniform vibration over the entire blade length and enhances concrete compact - details see: https://www.machineto.com/sf3-electric-concrete-vibratory-screed-machine-10119330

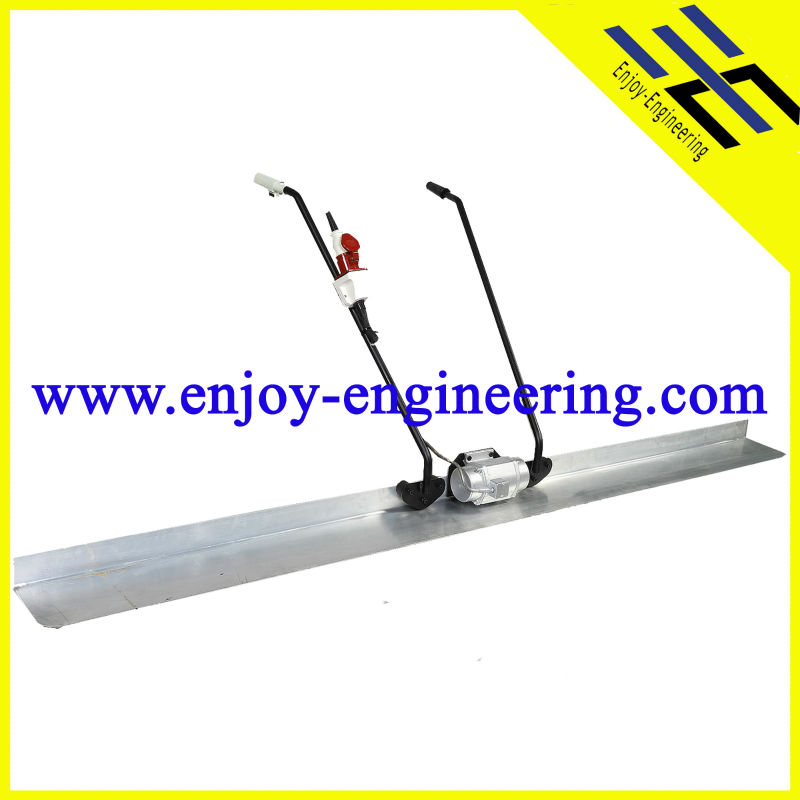

Electric Vibratory Screed provides uniform vibration over the entire blade length and enhances concrete compaction, makes it possible to level up to 4 times more concrete than the traditional method, and do it more accurately.
Features :
1) Specially design, hardened aluminum blade ensuring a smoother finish than conventional screeds.
2) Heavy rubber mounts to reduce the vibration level on the handle.
3) Adjustable handle in height, vertical & horizontal position (optional)
4) The rounded ends of the blade make it easy to go around obstacles
5) The tilt-up stand keeps the engine out of concrete or off the ground obstacles.
6) One piece casting body easy connect to engine.
7)Emergency stop switch available.
8) 7 different working widths: 4ft/1. 2m, 6ft/1. 8m, 8ft/2. 4m, 10ft/3. 0m, 12ft/3. 7m, 14ft/4. 5m, 16ft/4. 9m.
9)Easily changed blades.

Surface Finishing Screed
Model	SF3
Engine	380v, 50hz, three phase,2800r/m
Engine Type	electric motor
Power : kw(hp)	0.25kw(0.33)
Weight: kg(lbs)	24.2(53.2)
Blade
Size:m(ft)	1.22(4)	1.8(6.0)	2.44(8.0)
Weight:kg(Ibs)	2.9(6.4)	4.36(9.6 )	5.81(12.8)
Size:m(ft)	3.66(12.0)	4.47(14)	4.88(16)
Weight:kg(Ibs)	8.72(19.2)	10.16(22.4)	11.61(25.6)
packing(cm)	251*20*70(8feet blade size)
