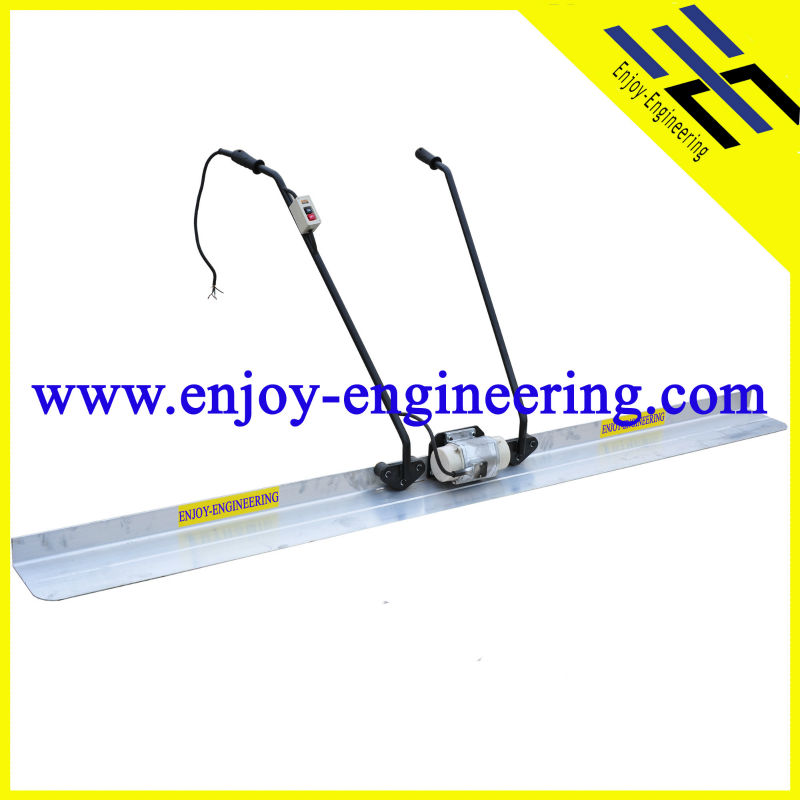

SF3 electric concrete vibratory screed machine
electric Screed powered by electric motor, provides uniform vibration over the entire blade length and enhances concrete compact - details see: https://www.machineto.com/sf3-electric-concrete-vibratory-screed-machine-10119329
Condition:New | Place of Origin:Zhejiang China (Mainland) | Brand Name:enjoy-engineering | Model Number:SF3 |
Power Source:Electric | Power(W):0.25kw(0.33hp) | Weight:24.2kg | Dimension(L*W*H):251x20x70cm |
Certification:CE | Warranty:1 year | After-sales Service Provided:Engineers available to service machinery overseas | blade length:optional |
Electric Vibratory Screed provides uniform vibration over the entire blade length and enhances concrete compaction, makes it possible to level up to 4 times more concrete than the traditional method, and do it more accurately.
Features :
1) Specially design, hardened aluminum blade ensuring a smoother finish than conventional screeds.
2) Heavy rubber mounts to reduce the vibration level on the handle.
3) Adjustable handle in height, vertical & horizontal position (optional)
4) The rounded ends of the blade make it easy to go around obstacles
5) The tilt-up stand keeps the engine out of concrete or off the ground obstacles.
6) One piece casting body easy connect to engine.
7)Emergency stop switch available.
8) 7 different working widths: 4ft/1. 2m, 6ft/1. 8m, 8ft/2. 4m, 10ft/3. 0m, 12ft/3. 7m, 14ft/4. 5m, 16ft/4. 9m.
9)Easily changed blades.
Surface Finishing Screed |
Model | SF3 |
Engine | 380v, 50hz, three phase,2800r/m |
Engine Type | electric motor |
Power : kw(hp) | 0.25kw(0.33) |
Weight: kg(lbs) | 24.2(53.2) |
Blade |
Size:m(ft) | 1.22(4) | 1.8(6.0) | 2.44(8.0) |
Weight:kg(Ibs) | 2.9(6.4) | 4.36(9.6 ) | 5.81(12.8) |
Size:m(ft) | 3.66(12.0) | 4.47(14) | 4.88(16) |
Weight:kg(Ibs) | 8.72(19.2) | 10.16(22.4) | 11.61(25.6) |
packing(cm) | 251*20*70(8feet blade size) |
Packaging Detail:carton box |
Delivery Detail:15days |
