Stretch wrapper, 1.PLC control system, 2.300% Powered Pre-stretch saves film, 3.Schneider inverter and SEW motor - details see: https://www.machineto.com/semi-automatic-pallet-pre-stretch-wrapper-10065417

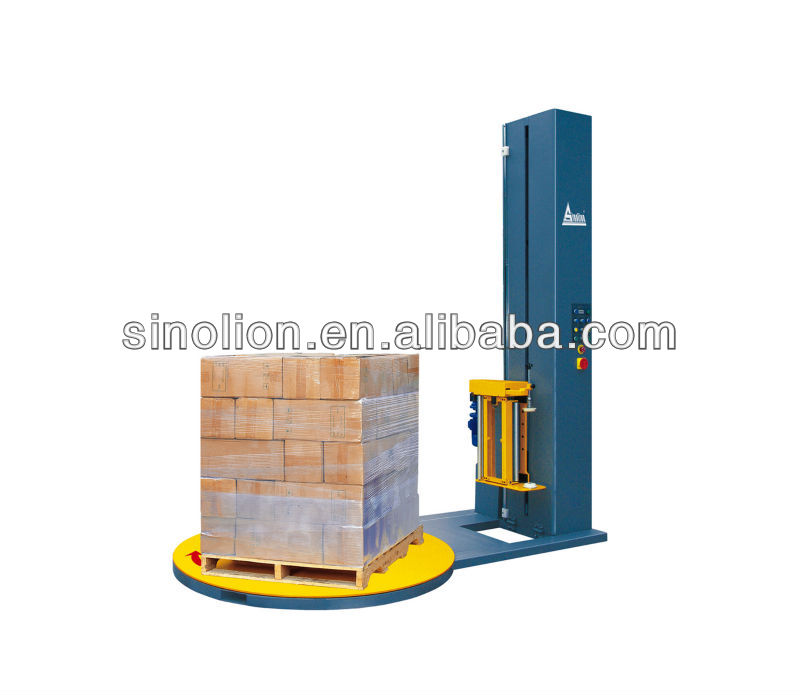

T1650F Semi-auto Pre-stretch Wrapping Machine (Ourmost popular machine with the most proven techniques)

The quality of all materials used and the high technical standards for all mechanical and electronic components merge with highly efficient and precise assembling and testing procedures; this leeds to the production of highly performance, durable

and safe products. Sinolion stretch wrappers are reliabile, easy to use and to service and most of all they strictly comply with safety rules and standards.

Controls

1Cycle pause capability

2Photo-eye pallet height sensor

3Separate variable carriage up/down speed

4 Adjustable Top and Bottom wrap count (1-7 )

5 Reinforce wrap allow more wrap on same location

63-12RPM variable turntable speed by frequency changer

Simple control panel for easy handling

Turntable

Go home position after wrap cycle finished

Heavy duty chain drive

Soft start/soft stop

Film carriage

The film carriage is equipped with film stretch device realized by an electromechanical brake controllable from control panel.
Powered pre-stretch 300% to min film consumption(Pre-stretch ratio can be specially made )

Carriage door opens for effortless roll change and thread film

Film delivery variable speed by separate AC Drive Motor

Heavy duty double-chain carriage lift, calm and safety

Options

Ramp
Top plate
wrapping height	2800mm
Turntable diameter	1800mm, 2000mm
Turntable capacity	2500kgs, 3000kgs

Specifications

Max. wrap size (mm)	1200 (L)×1200 (W) ×2400(H)
Turntable diameter	1650 mm
Turntable height	77 mm
Turntable bearing capacity	2000kgs
Turntable speed	3-12rpm
Machine weight	600kgs
Power supply	220V 50Hz 1Phase
Power	1.5kw
Machine dimensions (mm)	2745 (L) ×1650 (W) ×2863(H)
Wrapping efficiency	20-40 load/h, basing on load
