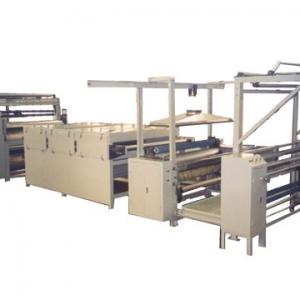

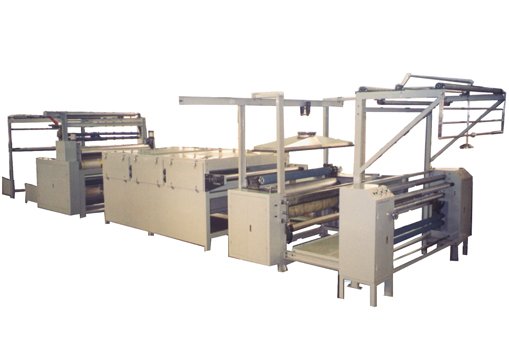

Sell Transfer Laminating production line

1) Power supply: 80kW, 380V, 50Hz, 2) Dimensions: 1,400 x 2,500 x 2,600mm, 3) Machine roller width:1,750mm - details see: https://www.machineto.com/sell-transfer-laminating-production-line-10266569

Place of Origin:Shanghai China (Mainland)

Brand Name:DaHe

Model Number:DJ17

Sell Transfer Laminating production line

contact supplier for Sell Transfer Laminating production line

Product Name:Transfer Laminating Machine

Model Number: Dj17-175

Place of Origin: China

Features and specifications:1) Power supply: 80kW, 380V, 50Hz2) Dimensions: 1,400 x 2,500 x 2,600mm 3) Machine roller width:1,750mm4) Equipped with advanced electronic components5) Imported intelligent temperature control display instrument 6) Motor speed converter7) Adjustable laminating strength Compact machine structure8) Easy operation9) Reliable functions

Application:
Thistransfer laminating machineis applied to the laminating of textile face fabrics as woven,knitted,high pile,imitation fur and velour fabrics and to the laminating of films with textile face fabrics and shoe fabrics and interlinings with use of solvent-type and water soluble bonding agent.Thus bonded products have good air permeability and touch.The laminating strength can be adjusted.

Features:
Thistransfer laminating machinenewly developed by use of new technology is characteristic of compact machine structure,easy operation,reliable functions and more flexibility;
Equipped with advanced electronic components,imported intelligent temperature control display instrument and converter to adjust motor speed;

Main Technical Parameters:
Machine roller width(mm) 1750
Power supply(kw) 80(380v,50hz)
Overall dimension(mm) 1400×2500×2600

2 Main Technical Parameters and specifications

2.1 Coating width:90cm-160cm

2.2 Production speed:5-20m/min

2.3 Power units:

Opening motor: 0.37kw×2 380V

Deviation correcting motor: 0.55kw×2 380V heating roller power: 15kw×2 380V

Main motor: 2.2kw 380V dryer power: 36kw 380V

Rebatcher motor: 2.2kw 380V

2.4 Overall power:3 phase 380V 50Hz control power:220V capacity:75kw

2.5 Physical dimension of control table: L×W×H 1300cm×800cm×1150cm

2.6 Physical dimension of machine: L×W×H 14000cm×2500cm×2600cm

3. Structure characteristics

3.1 This machine consists of debatcher, selvage justifying device, host machine, net dryer, hot pressing part, cooling part, rebatcher and electric equipment.

3.2 Debatcher:

3.2.1 Roll off creel is suitable for piece or package fabric to meet demands of different cloth feeding.

3.2.2 Tension of fed cloth can be adjusted by hand wheel.

3.3. Selvage justifying device

3.3.1 Creative idea of roll off creel enables matrix smoothly and precisely feeding into the host machine for coating transfer, as it can open the feeding cloth and correct the deviation if there is crease in the cloth.

3.3.2 Hand wheel can adjust the opening pressure, accuracy of selvage justifying is within ±2.0m/min, and sensitivity can be adjusted based on the processed fabric.

3.4 Host machine

3.4.1 Host machine consists of opening roller, engraved roller, support silicone roller, reversing regulated roller, squeeze range, and exhaust hood.

3.4.2Opening roller installed before the engraved roller enables fabric smoothly fed into the engraved roller for size transfer.

3.4.3 Horizontal pressure of squeeze range can be regulated by spring, turbine and scroll can control the angle pressure of engraved roller, coating angle as well as coating content.

3.4.4Support silicone roller ensures size transfer to the fabric from engraved roller evenness and fullness.

3.4.5 The whole machine has one engraved roller, the outside diameter is 270mm, mesh and grammage are defined according to the user, other specifications should be ordered.

3.4.6 Reversing regulated roller is used to bound corner of fabric on the engraved roller and change direction after fed into the dryer.

3.5 Net dryer

3.5.1 Teflon delivery net features good curing effect, and normally tensionless running of substrate, heat shrinkage reduction, stable width of product as well as soft handle.

3.5.2 Heating with far-infrared quartz glass tube, control with three-phase voltage regulator temperature control system, fluctuation of temperature displayed on the meter is less than ±2°C.

3.5.3 Top cover of dryer has air exhaust system. When stoppage caused by fault or gases of too high concentration in production, open the exhaust fan, thus products will not be damaged by high temperature or gases of high concentration, it enables safety production.
