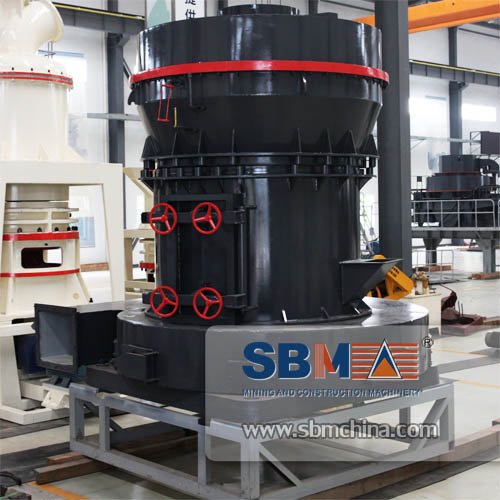

SBM Raymind Mill -Asphalt milling machineApplication

SBM Raymind Mill (Raymond Grinder) is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, latest mechanical techniques of Sweden, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass. The fineness of the finished product can be adjusted from 100 mesh to 325 mesh according to requirements.

Raymond Mill -Asphalt milling machineOperating Principle

The whole Raymond mill machine is collocated with jaw crusher, elevator, hopper, electromagnetic vibrating feeder, main unit, classifier, collector, cloth deduster and high-pressure blower.
The working principle is as follows: load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings go outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus grinded.
After being grinded, the stuff is to be routed to the classifier along wind belt of the blower and the rough powder will be put back to the grinder for regrinding.
The fine powder flows into the cyclone collector together with air flow and is expelled from the powder output pipe as product.
In the grinding chamber, since the stuff contains moisture to some extent, the heat generated during grinding makes the moisture evaporate; since the pipeline joints are not airtight, the external air is sucked in and the circulation air mass increases. In order to enable the grinder to work in negative pressure, the increased air flow is guided to the deuster and sequentially to the atmosphere after purification.

SBM Raymind Mill -Asphalt milling machineSpecification

Type Roller Ring Max. Feeding size(mm) Fineness of product (mm) power for Machine (kw) NO dimension (mm) height (mm) Inner Diameter (mm) HEIGHT (mm) 3R2115 3 210 150 630 150 15 0.44-0.165 15 3R2615 3 260 150 780 150 15-20 0.44-0.165 18.5 3R2715 3 270 140 830 140 15-20 0.44-0.165 22 3R3016 3 300 160 880 160 15-20 0.44-0.165 30 4R3216 4 320 160 970 160 20-25 0.44-0.165 37

Note: This specification is just for reference, any changes are subject to the Raymond mill products.
