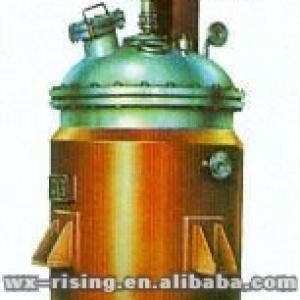

Sanitary Seed Tank

cooling-heating method can be chosen from jacket-type, internal coil type, and external coil type. - details see: https://www.machineto.com/sanitary-seed-tank-10283224

Place of Origin:Jiangsu China (Mainland)

Brand Name:RSE

material:stainless steel

The tanks are made of carbon steel or stainless steel mainly used in fermenting
production like MSG, citrus acid, zymin, glycerin, pharmaceutics and food
industries. Refer to the following table for specifications. Note:
cooling-heating method can be chosen from jacket-type, internal coil type, and
external coil type.

Nominal capacity (M3)	Diameter cylinder (Dgmm)	High cylinder H(mm)	Heat transfer area M2	Stir rotational speed r.p.m	Mixing shaft power KW
0.05	300	700	400	300-350	0.55
0.1	400	800	500	300-350	0.75-1.1
0.2	500	1000	600	280-340	0.75-1.5
0.3	550	1200	650	280-340	1.1-1.5
0.5	600	1650	700	280-320	1.5-2.2
0.8	800	1600	900	200-280	2.2-5.5
1.0	800	1900	900	200-280	2.2-5.5
1.2	900	1800	1000	200-280	3-7.5
1.5	900	2200	1000	200-280	3-7.5
2.0	1000	2500	1100	200-260	4-11
3.0	1200	2600	1300	200-260	5.5-11
4.0	1300	3000	1400	200-220	7.5-15
5.0	1400	3200	1500	180-220	7.5-18.5
