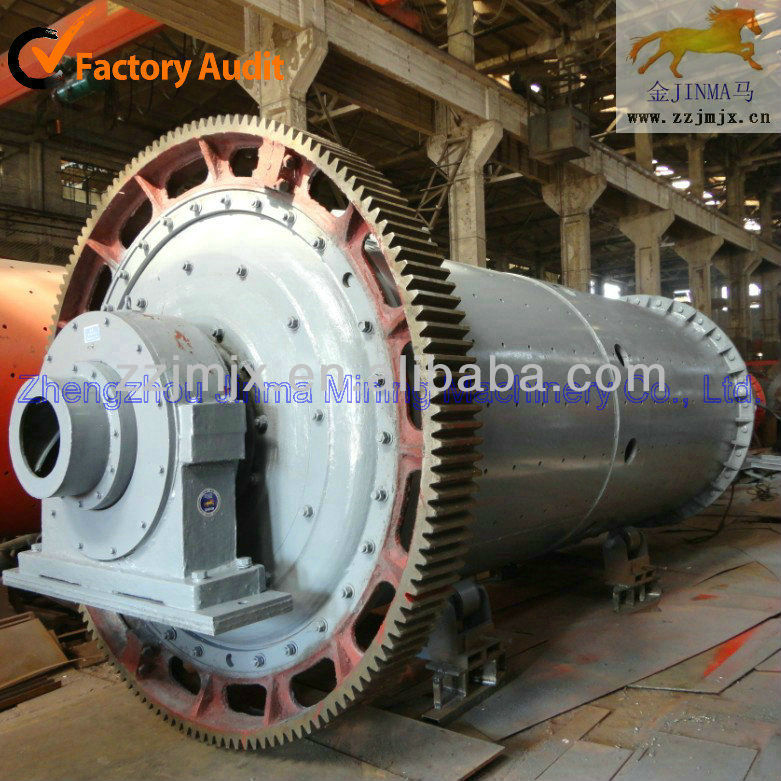

sand making Rod Mill

-Rod mill is the best choice for sand making, -ISO, CE, SGS, BV, -Direct from factory competitive price, -2 year warranty - details see: https://www.machineto.com/sand-making-rod-mill-10314095

Condition:New	Type:Rod Mill	Motor Type:AC Motor	Power(W):75 KW
Capacity(t/h):30-50	Place of Origin:Henan China (Mainland)	Brand Name:Jinma	Model Number:all models
Dimension(LWH):6400x2200x2230	Weight:17 tons	Certification:ISO, CE, BV, SGS	Warranty:2 years
After-sales Service Provided:Engineers available to service machinery overseas	installation:offer foundation drawing and technical help	motor:Chinese famous brand or as request	guarantee:2 years (wearing parts exclude)
certificate:ISO9001:2008, SGS, BV, CE	color:As required	quality:China standard, high quality	feed size:6-30 mm
discharge size:0-5 mm	capacity:75-90 ton per hour	power:55 kw

contact supplier for sand making Rod Mill

Rod Millfeatures:

sand making Rod Mill is applied to metal and nonmetal mine, water conservancy and glass building materials grinding various ore, rock and artificial sand which needs product granularity evenly. The energy-efficient rod mill that our company produces is all that rolling bearing support instead of bearing bush slip bearing support. It will save 10-20%energy compared with slip bearing support and improve production capacity by 10-20%. It uses grease replacing dilute oil lubricating station. The grinding mill does not need allocate high price high or low pressure lubricating station.The grinding mill with diameter above 2700 mm can adopt high pressure electrical machinery, pneumatic clutch, big gear oils pray lubricating and slow speed driving device for maintain. The production capacity differs significantly due to material kind, feed size and discharge size.

Rod milltechnical parameters:

Model	drumdiameter (mm)	drum length(mm)	Feed size(mm)	Discharge size(mm)	output(mm)	Power(KW)	Weight(KG)
HS-0930	900	3000	6-25	0-5	3-8	22	4500
HS-1224	1200	2400	6-25	0-5	5-25	45	12000
HS-1245	1200	4500	6-25	0-5	6-35	55	13800
HS-1530	1500	3000	6-25	0-5	7-45	90	17000
HS-1545	1500	4500	6-25	0-5	3.6-11	110	21500
HS-1557	1500	5700	6-25	0-5	10-85	132	24700
HS-1860	1800	6000	6-30	0-5	20-100	210	34000
HS-2136	2100	3600	6-40	0-5	30-110	215	45000
