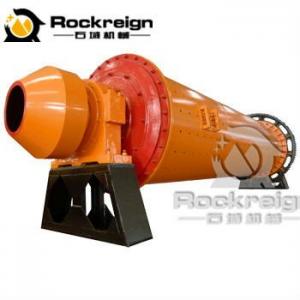

RockReign Factory High Efficiency Industrial Grinding Machines

Industrial Grinding Machines, 1.high efficiency and energy-saving, 2.widely application, 3.easy and safe operation - details see: https://www.machineto.com/rockreign-factory-high-efficiency-industrial-grinding-machines-10314304

Condition:New	Type:Ball Mill	Capacity(t/h):0.65-90	Place of Origin:Shanghai China (Mainland)
Brand Name:rockreign	Model Number:9001800-36006000	Warranty:1 year	color:according to customer's requirements
material:mainly in steel	guarantee:1 year(wearing parts excluded)

RockReign Factory High Efficiency Industrial Grinding Machines

contact supplier for RockReign Factory High Efficiency Industrial Grinding Machines

The Industrial Grinding Machines is especially applicable for the fine and middle crushing of such hard and fragile materials as sand for building (to crush such raw materials as the blue stone, limestone, scree and granite boulder into sand for building), abrasive materials, corhart, cement, quartz sand, steel sand, slag, powdery copper ore, iron ore, gold sand, aggregate of concrete and pitch and so on. The rod mill is a kind of high-efficient energy-saving crusher and sand maker, its energy consumption is 50% less the traditional sand-making equipment, and it is a kind of advanced sand-making equipment in the world.

Principal Technical Data for Industrial Grinding Machines

Model	cylinder speed(r/min)	Ball Weight(t)	feed particle size(mm)	Give Makings Size(mm)	Output(t/h)	motor power(kw)	Total weight(T)
900×1800	36~38	1.5	≤20	0.075-0.89	0.65-2	18.5	4.6
900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	5.6
1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	30	12
1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
1200×4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	13.8
1500×3000	29.7	7.5	≤25	0.074-0.4	2-5	75	15.6
1500×4500	27	11	≤25	0.074-0.4	3-6	110	21
1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
1830×3000	25.4	11	≤25	0.074-0.4	4-10	130	28
1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	32
1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210	34
1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245	36
2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	34
2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	42
2100×7000	23.7	26	≤25	0.074-0.4	8-48	280	50
2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	48.5
2200×6500	21.7	35	≤25	0.074-0.4	14-26	380	52.8
2200×7000	21.7	35	≤25	0.074-0.4	15-28	380	54
2200×7500	21.7	35	≤25	0.074-0.4	15-30	380	56
2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	65
2700×4000	20.7	40	≤25	0.074-0.4	12-80	380	94
2700×4500	20.7	48	≤25	0.074-0.4	12-90	480	102
3200×4500	18	65	≤25	0.074-0.4	According to the process conditions	800	137
3600×4500	17	90	≤25	0.074-0.4	According to the process conditions	850	158
3600×6000	17	110	≤25	0.074-0.4	According to the process conditions	1250	175
