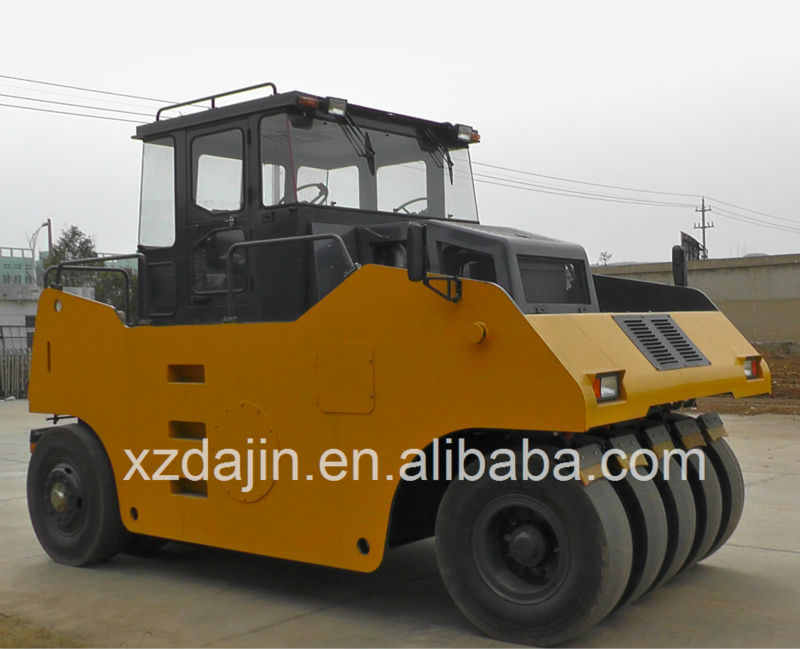

Max.Working Mass t 26, Average Ground Pressure kpa 250~420, Working Width mm 2750 - details see: https://www.machineto.com/road-roller-10121378

Power System
Optional powcr systcm such as Cummins or Shangchai dicscl which has high torque reserve, high fuel efficiency, convenient maintenance and national environmental standard-compliant emission and noise.
Operation System
Thcre arc double stccring whccls, double scats and two scts of indcpcndcnt operating system; gearshift adopts electronic-control handle and two-gear desicn to meet the need for compacting and travelling, meanwhile. electron-ic-control handle has a smooth opcration, comfortable handfccl. Stable shifting relieves and labor relief.
Braking System
Scrvice brake adopts air-on-oil shoc brakc; parking brake adopts diaphragm spring brake which works with foot brake cooperatively and has a reliable perlormance.
Radiator
Enlargcd fan and radiating arca, uniquc dcsign for air flow and watcr tank ensure a normal working condition even in a extremelv high temperature.
Cab
Innovative cab offers a maximum view. and is characterized by dustproof sound and heat insulation, shock absorption and anti-ultraviolet. The operating system is designed according to human engineering principle and offers a user-friendly environment. heater is optional for cab. Under the assistance of double operation, the roller can be free of the blind angle in the roadside, curve and corner.
Sprinkling System
Driving sprinkling, external water drawing and internal water refill- ing etc., if no extemal water resource. the automatic water refilling can move the water from ballast tank to sprinkler, this can not only make use of water effectively but also avoid the rusting by dead water in ballast tank.Adj ustable intermittent sprinkling system can meet the demand under dif-ferent working conditions and extend the life of water pump, avoid the shut-down as the waterway breakdown.
Excellent working performance
Through the compaction by pneumatic tire. the paving materials move in different directions due to kneading produced by the elasticity of tire, forming into a even, dense and crack-free surface.Through swing front wheels the roller ensures an equal compaction when in an uneven site.Advanced sprinkling-free infrared tire heating system is optional compo-nent which enable the roller to need no sprinkling and improve the density and life of road.
Service & Maintenance
Easily-opened engine hood enable the serviceman to check the battery,water pump and chain and do maintenance easily.

Item	Unit	DK268
Max.Working Mass	t	26
Average Ground Pressure	kpa	250~420
Working Width	mm	2750
Overlapping Of Front & Rear Tyre	mm	45
Engine (Diesel)
Make		Shangchai diesel
Model		SC8D180G2B1
Rated Power/Speed	kW/(r/min)	132/2000
Working Speed	km/h	0~8
Driving Speed	km/h	0~20
Max.Gradeability	%	20
Braking Mode
Braking Mode While Driving		Foot braking
Braking Mode WhileParking		Hand braking
Min.Turning Radius	mm	9000
Swinging Distance Of Front Tyre	mm	±45
Tyre No.		5+6
Clearance Between Axles	mm	3840
Electric System	V	24
Dimensions(L×W×H)	mm	5050×2900×3495
