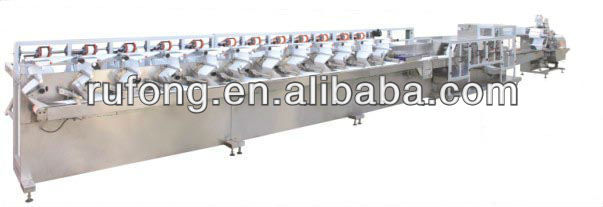

RF-WL100(12) AUTOMATIC WET WIPES PRODUCTION LINE

wet wipes machine - details see: https://www.machineto.com/rf-wl100-12-automatic-wet-wipes-production-line-10061205

Type:Packaging Line	Condition:New	Application:Machinery & Hardware	Packaging Type:Film,Wet wipes
Packaging Material:PE OPP	Automatic Grade:Automatic	Driven Type:Electric	Voltage:380V
Power:16KW	Place of Origin:China (Mainland)	Brand Name:RUFONG	Model Number:RF-WL100(12)
Dimension(LWH):1900022152100(mm)	Weight:8500kg	Certification:CE	After-sales Service Provided:Engineers available to service machinery overseas

Auto Unwinding
Raw material	Spunlace nonwoven fabric…
Raw material width	180-330mm
Raw material diameter	1400mm(maximum)
Inner diameter	3 inch
Paper stack QTY	12set
Tension control	Servo control
Folding and Pulling
Folding width	95-115mm, adjustable(extend this scope need special produce)
Folding type	Z fold and interfold(Z+Z need special produce)
Pulling drive	Servo motor
Quantitative Moisture
Liquid feeding scope	Proportion 60-80%, Quantity: 2.0-40L/min
Moisture accuracy	±2%,calculate by flow meter
Liquid feeding set	Touch screen set
Stacking
Cut length	120-230mm(extend this scope need special produce)
Stacking height	Within 100mm
QTY of stack	2-10 piles /stack
Set type	Separate touch screen
Auto Packing Machine
Packing film diameter	Max 350mm
Packing film width	Max 460mm
Bag length	150-350mm
Packing width	100-165mm
Packing height	20-100mm
Speed control	10-80 bags/min
Operate interface	Separate touch screen
Reciprocating control	Servo motor
End seal control	Servo motor
Film feeding motor	Servo motor
Material feeding motor	Servo motor
Punch and Sticker	Servo motor
Agitate tank
Agitate tank volume	600L,2sets
Liquid level control	Electronic detect, touch screen set
Quantity detect	Flow meter(made by Germany)
Pipeline connect	ISO Jam quick connector

Option equipment	Date coder

Packaging Detail:WOOD PACKAGE

Delivery Detail:3 MONTHS

1: max.packing size: 450*270*350mm
2: min.packing size: 250*60*60mm
3: shrink tunnel size: 1200*500*380mm
4: stainless heater

Large vertical form fill seal
Omron PLC
Omron PID
FESTO pneumatic component
Schneider servo etc

1.Model-WQ shop aprons machine
2.Speed:80 pcs/min
3.Voltage : 220V
4.Certificate : CE,GOST-R

1. Slitting and scoring precision less than or equal to 0.5 mm
2. Order change time: 3 ~ 6 seconds

PET bottle air conveyor, air conveying system
Widely used in medicine, food, daily chemicals, and other light industry.

Packing machine used for plastic film packaging machine of good Over-wrapping plate without artificial assistance

Puncher machine
It is suitable to press punch,bending,forging the plastic products in the package,light industry.

cap liner/ closure wadding machine,cap lining machine,wadder, cap wadder inserting machine,plastic cap lining inserting machine

1) bottle filling line
2) filling oil,juice,water,etc
3) filling bottle,jar,can,etc
4) 1-10000ml, 2 heads
5) ready to use

Blister box packing machine
ISO9001:2008
Human-Machine interface
PLC control and touch screen

reasonable design,
convenient operation,
less noise,
less power consumption.

1.High speed
2.Stable
3.Suitable
4.ndividualization
5.automatic mode
