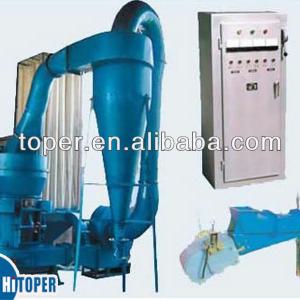

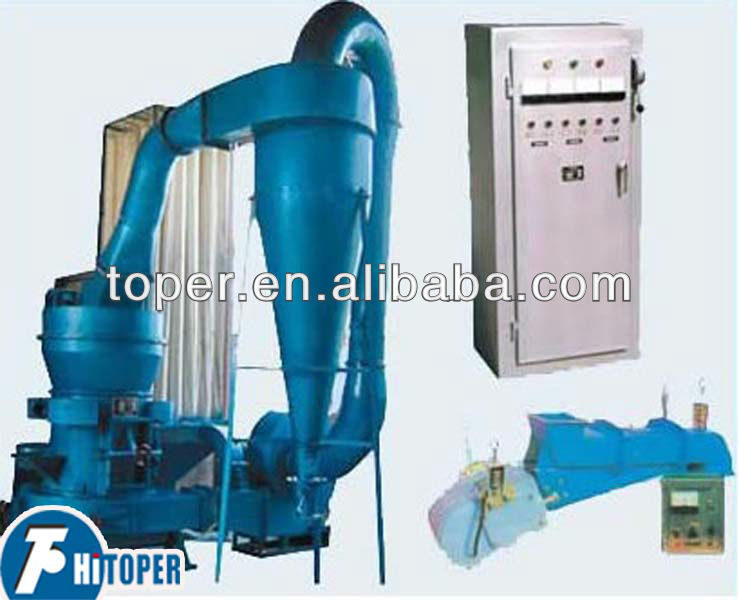

Raymond mill powder machine applied for clay, kaolin, bentonite

Raymond mill powder machine, raymond powder mill, 1.Small occupying space, 2.Uniformity and fineness products, 3.Total automatic - details see: https://www.machineto.com/raymond-mill-powder-machine-applied-for-clay-kaolin-bentonite-10314313

Condition:New	Type:Raymond Mill,3R1410	Motor Type:AC Motor	Capacity(t/h):1-10
Place of Origin:Henan China (Mainland)	Brand Name:TOPER	Model Number:3R1410	Dimension(LWH):340021613246
Weight:2.5t	Certification:ISO,CE & ISO	Warranty:12 months	Max feeding size(mm):5-8
Finished fineness(mm):0.125-0.044	Output per shift(t):1-10	Inner diameter of ring(mm):405	Diameter of ringing roller(mm):140
Height of ringing roller(mm):100	Weight(t):2.5	Price:Attractive

Our Raymond mill powder machine include:3R1410, 3R1815, 3/4R2715, 3R2716, 3/4R3117, 4R3216, 5R3818, 5R4119.

Raymond mill powder machine is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass. The fineness of the finished product can be adjusted from 100 mesh to 325 mesh according to requirements.

Features of raymond mill powder machine:

1.Small occupying space and strong integration capacity,forming an independent production system from the raw materials, crushing to finish powder and package.

2. A gooduniformity of finenesswith passing screen rate as high as 98%, which other machine cannot reach.

3. Adopts electromagnetic vibrating feeder, which ensureseven and regular feeding.

4. Easy to adjust, small in dimension, light in weight, with lower oil and power consumption and easy to maintain.

5. Main unit is equipped with a close gearbox which ensures itssmooth transmission and reliable operation.

6. Adoption of advanced central control console switch ensureattendance of nobodyduring the mill operation.

Working principle of raymond mill powder machine:

Firstly, raw material is crushed by jaw crusher to the size required, then elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between the ring and rollers to accomplish the grinding. After grinding, the rough materials will be recycled by the air from the fan back into the grinding chamber for regrinding and the fine powders are blew into the cyclone and poured out through the output-powder pipe as the final products.

Parameters of raymond mill powder machine:

Type	3R1410	3R1815	3R2615	3/4R2715	3R2716	3/4R3016	3/4R3117	4R3216	5R3818	5R4119
Max. feeding size (mm)	5-8	15	20	20	15-25	15-25	15-25	15-25	15-30	15-30
Finished fineness (mm)	0.125-0.044
Output per shift (t)	1-10	1-15	2-25	2-30	2-32	3-36	3-37	3-38	3-34	6-66
Inner diameter of ring (mm)	Φ405	Φ550	Φ780	Φ830	Φ830	Φ910	Φ920	Φ970	Φ1205	Φ1280
Diameter of grinding roller (mm)	Φ140	Φ180	Φ260	Φ270	Φ270	Φ300	Φ310	Φ320	Φ380	Φ410
Height of grinding roller (mm)	100	150	150	150	160	160	170	160	180	190
Main machine motor	Y 160M -6-7.5	Y 180L -8-11	Y225S-8-18.5	Y 225M -8-18.5	Y 225M -8-22	Y 225M -8-30	Y 250M -8-30	Y225S-4-37	Y280S-4-75	Y280S-4-75
Blower motor	Y132S-4-5.5	Y 132M -4-7.5	Y 160L -4-15	Y 180M -4-18.5	Y 180M -4-18.5	Y 180L -4-30	Y 200L -4-30	Y 200L -4-30	Y 225M -4-45	Y 250M -4-55
Analyzer motor	Y 190L -6-1.1	Y 100L -6-1.5	Y 112M -6-2.2	Y 112M -6-2.2	Y 112M -6-2.2	Y 132M -4-4	Y 132M -6-4	YCT200-4A-5.5	YCT200-4B-7.5	YCT200-4B-7.5
Overall dimension (mm)	3400×2161×3246	4200×3900×4300	5970×4000×5000	5970×4000×5200	5970×4000×5200	7500×4500×7200	7500×4000×7200	9900×5800×9000	8000×7000×9800	8000×7850×9800
Weight (t)	2.5	2.95	3.8	4	4	7.5	9.5	14	19.3	26.5
