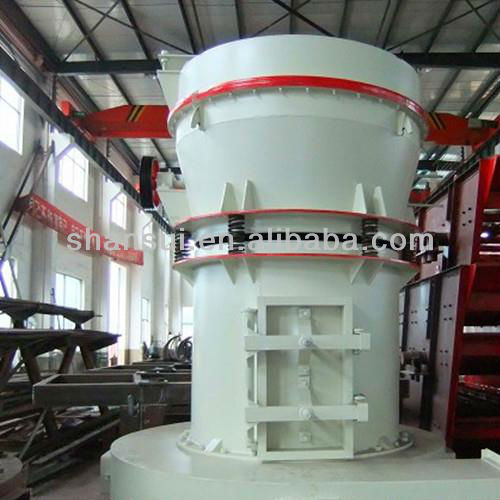

Raymond mill Grinder machine, 1.ISO9001:2008, 2.Price:negotiable, 3.Capacity:0.8-32T/H, 4.Stable performance - details see: https://www.machineto.com/raymond-mill-grinder-machine-10314145

The machine is used togrind barite,limestione,ceramics,etc,suchnon-inflammableandnonexplosivestuff,which the hardness isbelow 9.3 Mohsandmoisture is less than 6%in the trades of mining,metallurgy,chemical engineering and construction material.The fineness size is adjustable in the range of60-1250 mesh(it can even reach to 2500 mesh).It is possible to produce 10-60 mesh powder through assembling special device in the machine.

When the stuff is loaded into the grinding cavity,it is hoveled into the space between the roller and the ring for grinding.The grinded powder goes into classifier along with the circulation wind of the blower and the standard finenesspowder is guided to the cyclone collector as finished and lager size stuff falls back to the grinder for regrinding.The circulation wind returns to the blower to repeat the above process and the after wind enters into bag dust cleaner for purification.

Inner Structuer:

Featrures Raymond mill Grinder machine:

This kind of mill is our latest type which is designed by our experts who have long experience and hard research in mill equipment, which has opened a new time of industrial mill with high efficiency and low energy consumption.

Raymond mill Grinder machine Specification:

Model	Roller			Ring		Stuff Size(mm)	Fineness of Product(mm)	(Kw) Power For Main Roller Mill
	Number	(mm) Diameter	(mm) Height	(mm) Inside Diameter	(mm) Height
YGM7815	3	260	150	780	150	<15	0.613-0.033	18.5
YGM8514	3	270	140	850	140	<20	0.613-0.033	22
YGM9518	4	310	180	950	180	<25	0.613-0.033	37
YGM4121	5	410	210	1280	210	<25	0.613-0.033	75
YGM4528	6	450	280	1600	280	<35	0.613-0.033	132

Model	(mm)Fineness Of Product
	0.25	0.125	0.075	0.044
	(t/h)Capacity
YGM7815	1.7-4.0	1.5-3.0	1.1-2.2	0.8-1.4
YGM8514	2.0-5.0	1.8-4.6	1.3-2.8	1.0-2.0
YGM9518	2.5-6.6	2.0-5.6	1.8-3.6	1.3-3.0
YGM4121	3.0-10.0	2.3-6.8	2.0-4.5	1.8-4.0
YGM4528	6.0-20.0	4.6-13.6	4.9-9.0	2.6-8.0
