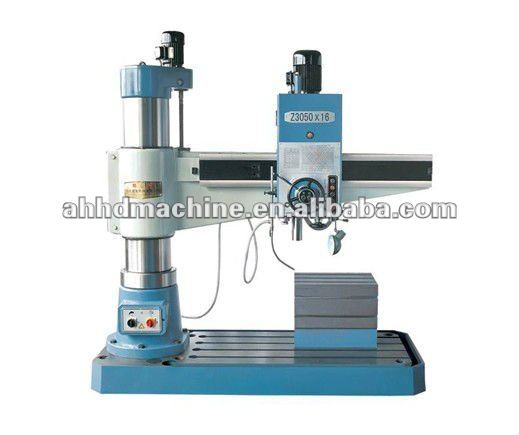

Radial Drilling Machine/drilling machine/drill

Professional manufacturer, Good quality , good service, Competitive price, Max drilling capacity 50mm - details see: https://www.machineto.com/radial-drilling-machine-drilling-machine-drill-10124992
Condition:NewCNC or Not:NormalPlace of Origin:Anhui China (Mainland)Brand Name:hudong
Model Number:Z3050X16color:optional
Radial Drilling Machine/drilling machine/drill
contact supplier for Radial Drilling Machine/drilling machine/drill


Radial Drilling Machine/drilling machine/drill

Main technology specification

Model

Z3050X16

Max drilling capacity

50mm

Distance spindle axis to column

Maximum1600mm
Minimum350mm

Distance spindle nose to base surface

Maximum1220mm
Minimum320mm

Headstock horizontal travel

1250mm

Distance of arm elevation

580mm

Speed of arm elevation

1.2m/min

Rotating angle of radial arm

360degree

External diameter of column

350mm

Taper of spindle

MT.5

Spindle speeds range

25~2000r/min

Spindle speeds

16

Spindle feeds range

0.04~3.2mm/r

Spindle feeds

16

Spindle travel

315mm

Drilling depth of per round of dial

122mm

Max feed-resistance of spindle

18Kn

Max allowable torque of spindle

500Nm

Main motor power

4KW

Motor power of arm elevation

1.5KW

Motor power of hydraulic clamp

0.75KW

Motor power of coolant pump

0.125KW

Net/Gross Weight

3500/3850kg

Outline of machine (L*W*H)

2500X1040X2650mm

Packing size(L*W*H)

2750X1130X2550mm
Radial Drilling Machine/drilling machine/drill
Packaging Detail:plywood packing, fixed in container.
Delivery Detail:about 30 working days
