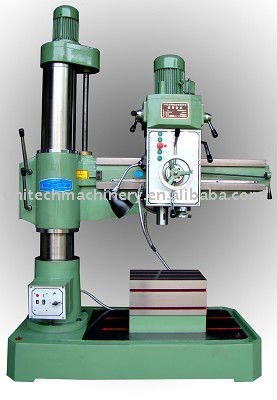

Radial Drilling Machine

Radial Drilling Machine, Model Z3032X9 Z3035X10, capacity 35MM, Auto-feeding spindle - details see: https://www.machineto.com/radial-drilling-machine-10125074
Condition:NewCNC or Not:NormalPlace of Origin:Shandong China (Mainland)Brand Name:ZJ
Model Number:Z3035X10Voltage:380vPower(W):1.5kwWeight:1100kgs
Certification:CE,ISO9001After-sales Service Provided:Overseas third-party support availableMetal drilling:metal
Radial Drilling Machine
contact supplier for Radial Drilling Machine


Z3032X9Z3035X10

Radial Drilling Machine

ModelZ3032×9Z3035×10
Code No.402003402004
Max drilling capacityCast Iron 32/Steel 25Cast Iron 35/Steel 32
Spindle feeds0.1,0.16,0.25
Spindle taperMT4MT4
Spindle speeds series66
Distance spindle axis to column generating line900-260250-950
Distance spindle nose to working surface of base1100-220340-1000
Spindle travel120190
Overall size1400×710×18801530×700×2100
Power of main motor1.5/2.21.5/2.2
Motor power0.552.2/0.75
Weight of machine8001100
Radial Drilling Machine
Packaging Detail:W/CASE size;165X75X195CM
Delivery Detail:40DAYS
