quartz sand making machine, 1.a whole complete plant, 2 cubic final product, 3.exported to many countries - details see: https://www.machineto.com/quartz-sand-making-machine-for-building-material-business-10082479

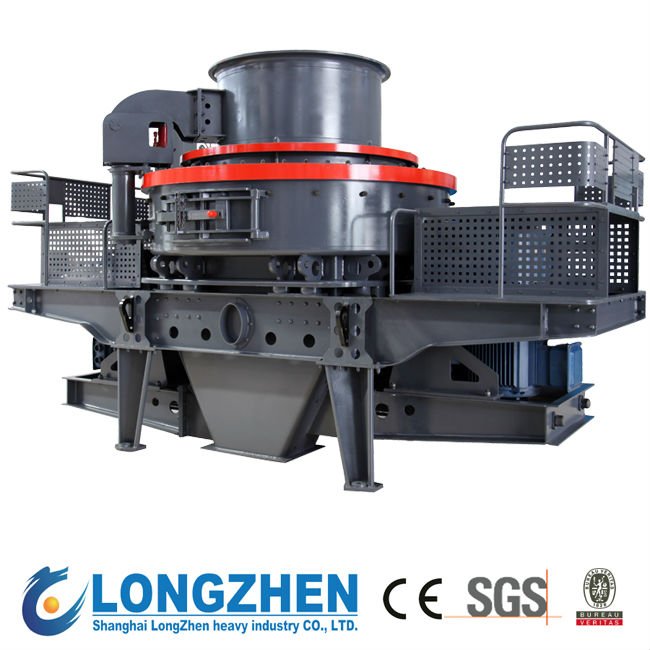

VSI quartz sand making machine

VSI new type of quartz sand making machine is a kind of new generation of quartz sand making machine Shanghai Longzhen Heavy Industry Co.,Ltd brings in foreign advancing technology and integrates the characters of national stone to apply to clients, it is high performance quartz sand making machine that at present is produced by sole company and has world advancing level. VSI new type of quartz sand making machine has the advantages of higher productivity, good product grain shape and low use cost compared with domestic like product.

The production line of sand-making equipment has the advantages of high automatic level, low operation cost, high crushing proportion, energy saving, large output, less pollution, convenient maintenance. The sand produced by the sand maker is in compliance with standard of the national Sand for Building, and the sand is characterized by equal size, favorable shape, and reasonable grade distribution.

quartz sand making machine for Features and Benefits

1 High production of crushing, has the function of fine crushing and rough grinding

2 Simple structure, easy to set up and repair, low cost in operation

3 Excellent shape of product, mainly the product shape is cubic with small fraction of elongated flaky particle shape, suitable for aggregate shaping , manufactured sand

4. It is little affected by the moisture content of materials, and the content can get up to about 8%.

5. It is suitable to crush medium hard and ultra-hard materials.

6. Working noise is lower than 75 decibel, less dust pollution.

Technical Parameters of quartz sand making machine data

quartz sand making machine model Moel	maximum feeding size (mm)	motor power (kw)	rotor speed (r/min)	available production capacity (t/h)	weight (t)	overall dimension (LXWXH) (mm)
VSI7516	30	110	1700-1890	120-180	7.8	4500×2040×2100
VSI8624	40	180	1400-1600	200-260	10.6	4500×2180×2220
VSI9527	50	264	1200-1500	300-380	12.8	4500×2280×2400
VSI1127	60	400	1100-1300	400-500	14.5	2690×2688×2600
