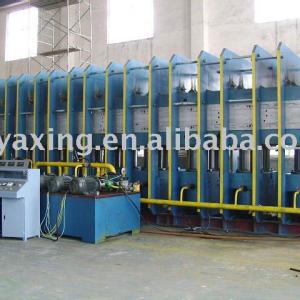

3600 ton plate vulcanizer machine, number of working layer, hand control, electric control, PLC control as customer's request - details see: https://www.machineto.com/qingdao-rubber-machine-3600-ton-hydraulic-press-10339495

1. plate vulcanizer machine is mainly use for producing rubber and plastic products, and support many kinds of the product mould

Type	XLB-DQ1200×1200×2	XLB-DQ1300×2000×1	XLB-Q1200×2500×1	XLB-Q1500×2000×1	XLB-Q2000×3000×1	XLB-Q1400×5700×1
Total pressure(MN)	315t	560t	750t	1000t	1800t	2800t
Plate size(mm)	1200×1200	1300×2000	1200×2500	1500×2500	2000×3000	1400×5700
Daylight(mm)	200	400	400	400	400	400
Layer	2	1	1	1	1	1
Piston stroke(mm)	400	400	400	400	400	400
Plate unit area pressure (kg/ cm2)	22	21.5	25	33.5	30	35
Main motor power(KW)	3	8	9.5	11	26	43.5
Overall dimension (L×W×H)(mm)	1685×1320×2450	2000×1860×2500	2560×1700×2780	2810×1550×3325	2900×3200×2860	2400×5800×3600
Weight (kg)	9500	17000	20000	24000	66000	110000

This vulcanizing machine is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.
Being a frame structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and a brad ability. The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.
