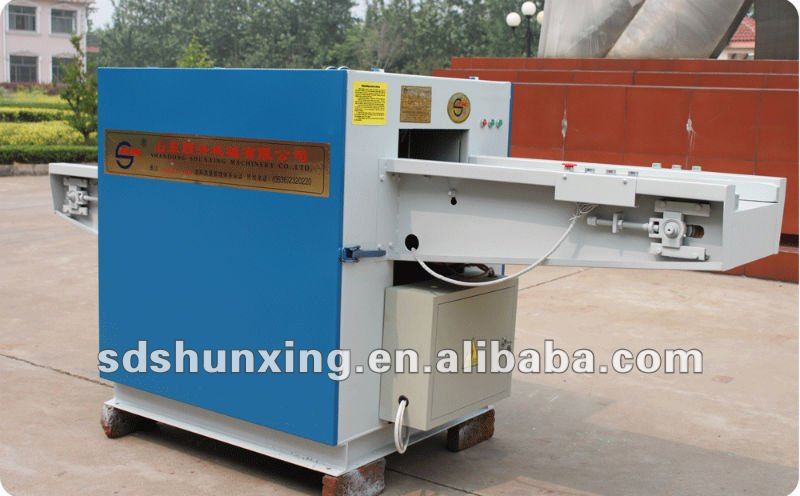

QD-350 Rags Cutter

1,rags cutting machine, 2,more than 1000-1500kg/h, 3. motor 7kw 4,new style, 5,the blade roller dia.:320mm - details see: https://www.machineto.com/qd-350-rags-cutter-10279844

Condition:New	Type:Cotton	Place of Origin:Shandong China (Mainland)	Brand Name:Shunxing
Model Number:QD-350	Voltage:380V	Power(W):7KW	Weight:800KG
Dimension(LWH):25809601200mm	Certification:CE,ISO9001	Warranty:ONE YEAR	After-sales Service Provided:Engineers available to service machinery overseas
material:metal

1. Uses the cutting between the blade roller and fixed blade to cut yarn, fabric etc. into small pieces.

2. Length is adjustable from 5 cm-20 cm .Speed can be adjustable according to customers’ special requirement.

3. It can meet the requirement of best quality, high output, low cost and also has a feature of reasonable structure, easy operation and the safe production and so on.

1 Output: 1000kg/h

2 The blade roller Dia: Ø320 mm

3 Speed of the roller: 230r/m

4 Motor : blade roller Y132S8, 5.5 KW 1 set

Feeding and discharging Y90 L4, 1.5KW 1Set

5 Chief bearing: 6216E 4 blade roller

6 Conveyer belt: 380×2100×4 1 feeding part

380×2750×4 1 discharging

7 Outside dimension: L×W×H 2580×960×1200 mm

8 Weight : ≈800kg
