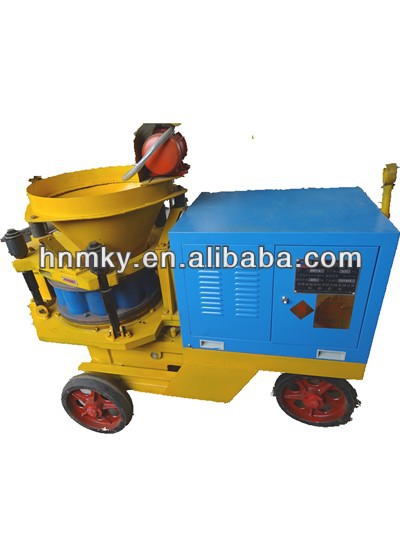

PZC9I mining machine mortar spraying pump

mortar spraying pump, 1.convenient, 2.high efficency, energy savable, 3.anti-explosion, 4.samll size,movable - details see: https://www.machineto.com/pzc9i-mining-machine-mortar-spraying-pump-10093227
Condition:NewPower Type:ElectricPlace of Origin:Henan China (Mainland)Brand Name:Keming
Model Number:PZC9ICertification:ISO9001Warranty:1 yearAfter-sales Service Provided:Engineers available to service machinery overseas
Color:YellowCapacity:7-9 m3/hConveying distance(level / vertical ):20/30 mSuitable water cement ratio:>0.4
Max. Aggregate size:20mmInner diameter of feed delivery pipe:51mm/64mmWind working pressure:0.2-0.4MpaGas consumption:12 m3/h
Motor power:7.5 kWVoltage grade:380v or 660v
PZC9I mining machine mortar spraying pump
contact supplier for PZC9I mining machine mortar spraying pump


PZC9I mining machine mortar spraying pump

  1. convenient
  2. high efficency, energy savable
  3. anti-explosion
  4. samll size,movable
  5. capacity is 7-9 m3/h, more capacity than usual nonexplosive concrete spraying machine
  6. suitable of mining work because it is nonexplosive concrete spraying machine
  7. Henan Coal Scientific Research Institute Co., Ltd. is a powerful company with a long history of 33 years. And it brings up many perfect talents, some of them open their companies and go on to cooperate with us. They are very greatful to their mother company.
  8. we are a big and open company. Welcome you from all over the world to have a visit and cooperate with us.
Capacity7—9m3/h
Max. conveying distance( level / vertical )100m/30m
Suitable water cement ratio Suitable water cement ratio>0.20
Max. Aggregate size<20mm
Inner diameter of feed delivery pipe51mm/64mm
Wind working pressure0.2—0.4Mpa
Gas consumption12m3/min
Motor power7.5kw
Voltage grade380v or660v
Gauge600m/900m
Dimension1520*820*1200(mm)
Weight900kg

Henan Research Institute of Coal Science Co., Ltd established in March of 1979. At the beginning of its creation, it is a memberof National Ministry of Coal Industry, mainly bears ministry and provincial scientific research projects. Over the years, it undertakes over one hundred projects authorized by original coal industry, Henan science and technology commission and coal enterprises bid inviting and it made scientific and technological achievements more than 90 items, won 45 awards, fulfilled technical consulting service over 110 items and more than 10 items of patent awards. In 1999, according to the deployment of national scientific research system reform, the original Henan Research Institute of Coal Science, listed as one of the national first batch of 242 enterprising science research institutes is delegated to Henan province with apanage management.

Keming Mechanical & Electric Department directly subordinate to Henan Research Institute of Coal Science expands from a pilot plant supported by abundant scientific research strength of Henan Research Institute of Coal Science. Now it develops into a leading enterprise in the industry of concrete spraying machine and is formed by concrete spraying machine as the main body of series of diversified products. It owes high reputation in society with high quality and technology.

Websitehttp://hnmky.en.alibaba.com
Tel.86-371-67836512
Fax86-371-63930764
Postcode450001
MSNmky-keming
Add.NO. 17 Fengyang Street, Zhengzhou City, Henan Province

PZC9I mining machine mortar spraying pump
Packaging Detail:Fumigation-free wooden cases
Delivery Detail:7-15 days after your confirmation.
