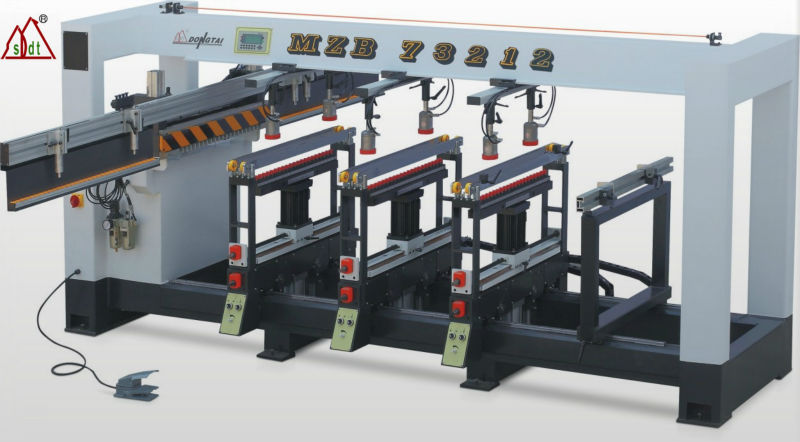

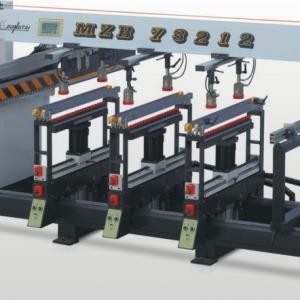

PVC panel board boring machine MZB73214
Dongtai Pressure wooden line machine. It is suitable for line at the gate of white glue stick wood. - details see: https://www.machineto.com/pvc-panel-board-boring-machine-mzb73214-10343803
| Condition:New | Place of Origin:China (Mainland) | Brand Name:DONGTAI | Model Number:MZB73214 |
| MZB73214 four rows multi-boring machine | ||||||||||||
| Technical parameters | ||||||||||||
| Maximum diameter of holes | Φ35mm(single drill) | Adoptor fitting diameter | 10mm | |||||||||
| Φ13mm(mutli-drills) | ||||||||||||
| Maximum depth of drilled holes | 60mm | Total power | 6Kw | |||||||||
| Maximum length of Work piece | 2800mm | Rotation speed of spindle | 2840r/min | |||||||||
| Minimum length of Work piece | 130mm | Total Weight | 1500KG | |||||||||
| Number of spindle | 21*4 | Overall size | 3600x3000x1620mm | |||||||||
| Packaging Detail:Export standard packing |
| Delivery Detail:30 days after we received the deposit |
