Provide Standard Ball Mill from ZhengZhou LD Machinery
| Condition:New | Type:Ball Mill | Motor Type:AC Motor | Power(W):30-1250 kw |
| Capacity(t/h):5-350 | Place of Origin:Henan China (Mainland) | Brand Name:LD | Model Number:MQY/G Series |
| Dimension(L*W*H):As type | Weight:12-175 t | Certification:ISO9001:2000 | Warranty:ONE YEAR,One year |
| After-sales Service Provided:Overseas third-party support available | Application:Cement,silicate,new building/refractory materials,fertilizer chemical | Installation:Technical support | Color:As required |
| Material:Manganese steel | Structure:Firm and stable | Service:Lifetime | Website:http://zzldzj.en.alibaba.com/ |
| Other:Contact Us |
Application of Ball Mill
Ball millis the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Working Principle of Ball Mill

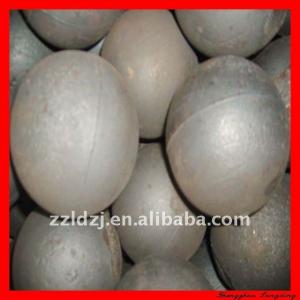

Theball millis a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Technical Parameters of Ball Mill
| Type | Speed (r/min) | Ball Weight (t) | Feeding Size (mm) | Output Size (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
| β1200*2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| β1200*3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| β1200*4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| β1500*3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.8 |
| β1500*4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 95 | 21 |
| β1500*5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 110 | 25.8 |
| β1830*3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 29 |
| β1830*4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 35.5 |
| β1830*6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| β1830*7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 210 | 43.8 |
| β2100*3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34.8 |
| β2100*4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 38 |
| β2100*7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 56.6 |
| β2200*4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 51.8 |
| β2200*6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 60 |
| β2200*7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 62 |
| β2200*7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| β2400*3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
| β2400*4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| β2700*4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 380 | 94 |
| β2700*4500 | 20.7 | 45 | ≤25 | 0.074-0.4 | 12-90 | 480 | 102 |
| β2700*5400 | 20.7 | 48 | ≤25 | 0.074-0.4 | 500 | 110 | |
| β3200*4500 | 18 | 65 | ≤25 | 0.074-0.4 | 800 | 137 | |
| β3600*6000 | 17 | 110 | ≤25 | 0.074-0.4 | 1250 | 175 |
Picture Show Ball Mill
| Packaging Detail:Standard exporting container. |
| Delivery Detail:Within 30 working days after receiving the order. |
