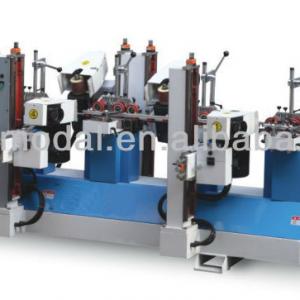

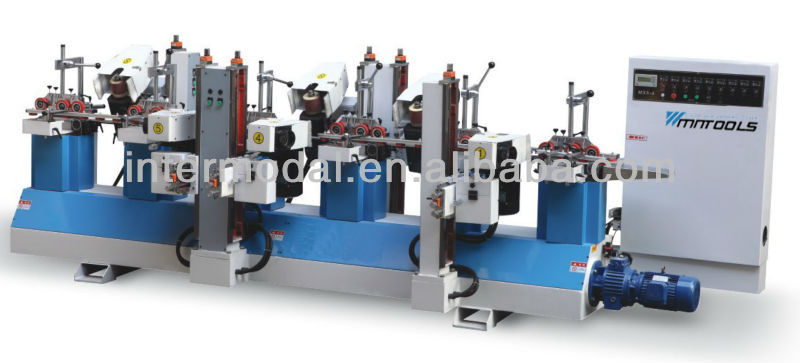

Profile sander
Profile edge sander, We can supply different function profile sander. - details see: https://www.machineto.com/profile-sander-10324227
| Condition:New | Place of Origin:Shandong China (Mainland) | Brand Name:MNTOOLS | Model Number:MTES-W6 |
| Power(W):15.4KW | Dimension(L*W*H):5000*1700*1550mm | Weight:2.5t |
Proflie sander
| Model No. | MTES-W6 | MTES-W8 |
| Processing width | 10-200mm | 10-200mm |
| Min. Working length | 450mm | 450mm |
| Max. Working thickness | 3-100mm | 3-100mm |
| Feeding speed | 3-42m/min | 3-42m/min |
| Number of spindle | 6sets | 8sets |
| Spindle speed | 600-4200r/min | 600-4200r/min |
| Spindle rotation | -45°~135° | -45°~135° |
| Spindle size | φ25.4*100mm | φ25.4*100mm |
| Grinding wheel size | 200mm | 200mm |
| Caliber of dust collector | 100mm | 100mm |
| Working air pressure | 0.2~0.6Mpa | 0.2~0.6Mpa |
| Feeding motor | 2.2kw | 2.2kw |
| Spindle motor power | 2.2kw*6 | 2.2kw*8 |
| Total power | 15.4kw | 19.8kw |
| Overall dimensions | 5000*1700*1550mm | 6000*1700*1550mm |
| Net weight | 2.5t | 2.8t |
| Packaging Detail:Exporting package |
| Delivery Detail:30days |
