Professional raymond mill/grinding mill manufacturer and raymond mill price

raymond mill, 1. Simple structure, 2. Large capacity, 3. Stable performance, 4. Big reduction ratio,low noise - details see: https://www.machineto.com/professional-raymond-mill-grinding-mill-manufacturer-and-raymond-mill-price-10314586

Condition:New	Type:Raymond Mill	Motor Type:AC Motor	Power(W):30kw
Capacity(t/h):1.9-2.6	Place of Origin:Henan China (Mainland)	Brand Name:TYM	Model Number:3R3016
Dimension(LWH):7.1x5.9x7.9m	Weight:12t	Certification:ISO,CE,CIQ,SGS	Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas	Color:Blue, red, white, as your request	Price:Factory price	Installation:Under the guidance of engineer
Application:Limestone, barite, carbon black, etc.	After-sale service:Training, technical support...	Market:India,Egypt,Sudan,Africa	capacity:0.9-16 tons per hour
Delivery time:7-15 days	Certificate:ISO,CE,CIQ	Transportation:Shipping railway highway

1.Raymond Mill Introduction

Raymond Mill (grinding mill)is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass. The fineness of the finished product can be adjusted from 100 mesh to 325 mesh according to requirements.

2. Raymond MillCharacteristic :
1)Raymond mill whole machine is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.

2)Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach;

3)Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably,

4)Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the durability of whole plant, 5)The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.

3. Raymond MillWorking Principle:

Firstly, raw material is crushed by jaw crusher to the size required, then elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between the ring and rollers to accomplish the grinding. After grinding, the rough materials will be recycled by the air from the fan back into the grinding chamber for regrinding and the fine powders are blew into the cyclone and poured out through the output-powder pipe as the final products.

4.Technical Data :

Model	Roller			Ring		Max. Feeding size (mm)	Fineness of product (mm)	power for Machine (kw)
Model	NO	dimension (mm)	height (mm)	Inner Diameter (mm)	HEIGHT (mm)	Max. Feeding size (mm)	Fineness of product (mm)	power for Machine (kw)
3R2715	3	270	150	830	150	15-20	0.044-0.165	22
3R3016	3	300	160	880	160	15-20	0.044-0.165	30
4R3216	4	320	160	970	160	20-25	0.044-0.165	37
5R4121	5	410	210	1280	210	<30	0.95-0.033	75

Raymond MIll in stock:

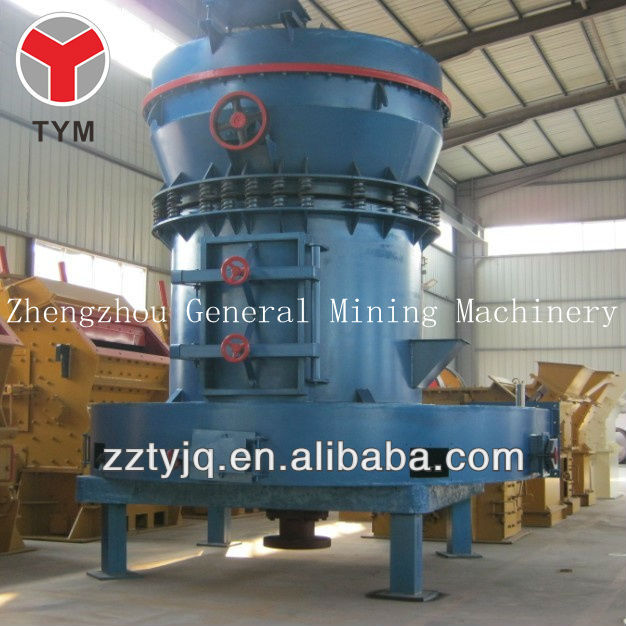

The whole raymond mill:

Roller structure inside the mill

Delivery site :

working site in foreign

CE certifaction

How is the quality of your products?

Our products are manufactured strictly according to national and international standard,

and we take a test on every grinder before delivered out. If you want see our quality certifications

and all kinds of testing report, please just ask us for it.

Guaranteed:

If products’ quality don’t accord to description as we give or the promise before you place order,

We promise 100% refund.

How about price?

Yes, we are factory and be able to give you lowest price below market one,

and we have a policy that “ for saving time and absolutely honest business attitude,

we quote as lowest as possible for any customer, and discount can be given according to quantity”,

if you like bargain and factory price is not low enough as you think, just don’t waste your time.

Please trust the quotation we would give you, it is professional one.

Why should we choose you?

Chose happens because of quality, then price, we can give you both

Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.

Our service formula: good quality+good price+good service=customer’s trust

Payment & shipping terms:

1.Price:FOB USD 1000-90000/set(negotiation)

2.Minimum Order Quanlity(MOQ):

3.Port:Shanghai;qingdao,(negotiation)

4.Packaging Details:Standard Container, Nude Packs or in Bulk.

5.Delivery Time:15-30 days

6.Payment Terms:L/C,T/T

7.Supply Ability:25-35 set per Month

Service Standards of Our Company:

Pre-sale:
(1) device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) training technical personnel for clients.
(4) the company free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and programs.

Sale:
(1) product acceptance.
(2) to help customers develop construction programs.

After-sale:
(1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
(2) equipment installation.
(3) on-site training of operators.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user satisfaction
