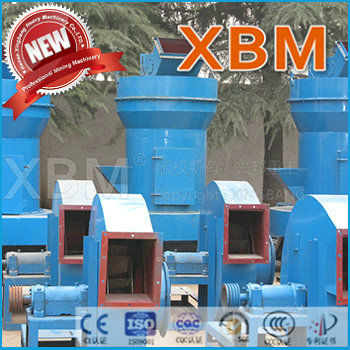

Professional raymond mill/grinding mill manufacturer and raymond mill price

ISO and CE certificated, Stable and reliable operation, low cost consumption, long service life, energy-saving / advanced - details see: https://www.machineto.com/professional-raymond-mill-grinding-mill-manufacturer-and-raymond-mill-price-10314047

Condition:New	Type:Raymond Mill	Motor Type:AC Motor	Power(W):refer to the model ofthe machine
Capacity(t/h):refer to the model ofthe machine	Place of Origin:Henan China (Mainland)	Brand Name:XBM	Model Number:3R/4R/5R/6R series
Dimension(LWH):refer to the model of the machine	Weight:refer to the model of the machine	Certification:ISO 9001:2008 & CE	Warranty:14 months
After-sales Service Provided:Engineers available to service machinery overseas	Raymond mill Color:blue or as per your requirment	Installation:engineer guide	After sale service:For Whole Life
Raymond mill Price:negotiable	Drawing / flow chart:Provide flow chart / draw	Maintenance:easy and convenient	Export countries:Eastern Europe, Middle East, Africa, South Asia, Oceania...
Raymond mill Spare parts:We also supply	Test run:Under our technician's guide	Raymond mill Factory:welcome to visit and inspect

Brief introduction

Raymond Mill is mainly applied to the powder processing of mineral products in industries of metallurgy, construction, chemistry, and mining etc. It can produce powder from more than 280 kinds of non-flammable and non-explosive mineral materials with Mohs hardness below 7 and humidity below 6%, such as barite, limestone, quartz, calcite, granite, porcelain clay, basalt, gypsum etc. The final size is between 613 micron and 440 micron(0.613mm—0.044mm).
The whole machine is collocated with jaw crusher, elevator, hopper, electromagnetic vibrating feeder, main unit, classifier, collector, cloth deduster and high-pressure blower.

Features

1. The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From the crushing of raw material to the grinding and packing, it is an independent production system.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4. Main parts of the whole plant are made of cast and steel of high quality. The technics is so subtly that insures the durability of whole plant.
5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.

	3R1410	3R2115	3R2615	3R2714	4R2714	3R3016	4R3016	4R3216	5R4119
Max Feeding Size(mm)	5-8	15	20	20	15-25	15-25	15-25	25	30
Finished Granularity(mm)	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044	0.125- 0.044
Classified Capacity(t/h)	1-10	1-18	2-25	2-28	3-30	3-34	3-36	3-38	6-76
Central Shaft Rotation(r/min)	280	180	170	170	170	178	178	130	105
Mill Inner Diameter(mm)	Φ405	Φ640	Φ780	Φ830	Φ830	Φ910	Φ910	Φ970	Φ1280
Rotor Diameter(mm)	Φ140	Φ210	Φ260	Φ270	Φ270	Φ300	Φ300	Φ320	Φ410
Height of Roller and Ring(mm)	100	150	150	140	140	160	160	160	190
Main Engine Motor(kw)	Y160M-6- 7.5	Y200L-8- 15	Y225S-8- 18.5	Y255M-8- 18.5	Y225M-8- 22	Y225M-8- 30	Y225M-8- 30	Y225S-4- 37	Y280S-4- 75
Air Blower Motor(kw)	Y132S-4- 5.5	Y132M-4- 11	Y180M-4- 15	Y180M-4- 18.5	Y180M-4-18.5	Y180L-4- 22	Y180L-4- 22	Y220M-4- 30	Y25M-4- 55
Analyzer Motor(kw)	Y90L-6- 2.2	Y112M-6- 2.2	Y112M-6- 2.2	Y112M-6- 2.2	Y112M-6- 2.2	Y132S-6- 3KW	Y132S-6- 3KW	YC1200-4A-5.5	YC1200-4B-7.5

Note : this parameter just for reference , we also have other models machines , if you are interested in our equipments , please don't hesitate to contact me .

Welcome your inquiry ! If you are interested in our equipments , please dont hesitate to conact me , I will reply you the details ASAP. XBM company will do the best in the pre-sale,sale, after-sale service !
