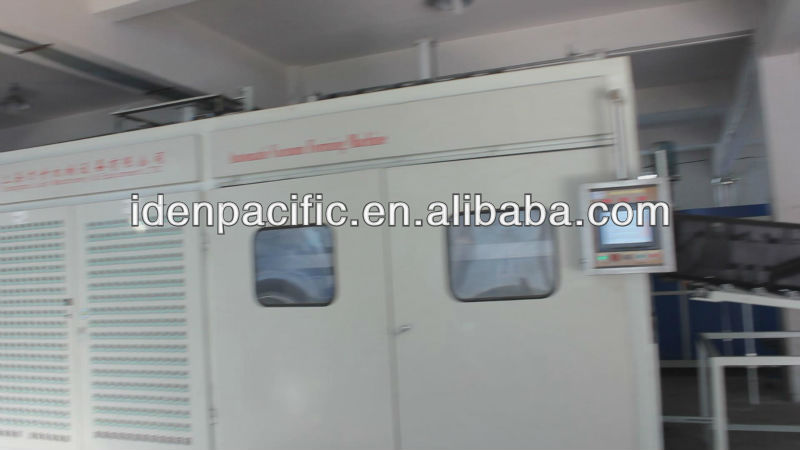

Professional Bedliner Thicksheet Vacuum forming machine

The machine is used in HDPE/LDPE etc. vacuum forming, 1)Automatic. PLC control, 2)High capacity 3)Environmentally friendl - details see: https://www.machineto.com/professional-bedliner-thicksheet-vacuum-forming-machine-10060367

Condition:New	Automatic Grade:Automatic	Usage:Plastic Forming Machine	Place of Origin:Shanghai China (Mainland)
Brand Name:IDEN PACIFIC	Model Number:IP-240-220-500	Voltage:380V.220V.450V	Power(W):360v
Dimension(LWH):480042003800	Weight:6000KG	Certification:CE	Warranty:14 Month
After-sales Service Provided:Engineers available to service machinery overseas

Professional Bedliner Thicksheet Vacuum forming machine

contact supplier for Professional Bedliner Thicksheet Vacuum forming machine

I. Basic parameters of the machine

1, Biggest effetive heating area:(2300MM×1200MM)

2, Molding forming height: 550MM

3, Electric Oven: quartz heating panel, onecontroller per piece.

4, Temperature control: temperature controlmodule.

5,Automatic electric oven: automatic cooling Artificial Loadinga and unloading fan, powered by air tank, make sure electricoven works stable and efficent.

6, Power supply: 380V/50HZ

7, Production speed: 20~40piece/min (Artificial Loadingaandunloading) 30~60piece/min(AutomaticLoadingaand unloading)

8, Compressed air usage: 0.8M3/min9, Air presure:0.6~0.8Mpa10, Vaccumdegree: -0.06~-0.09MP11, Max output of the equipment:approx. 182KW(aircompressor not included) Increasepower:7KW(AutomaticLoadingaand unloading

Computer Controlled Thicker Sheet Vacuum Forming Machine(Sheet Thermoforming Machine,Sheet Thermoformer) is a new product which adopts leading technology, medium wave heater. The whole system is controlled by PLC, Reliable performance and easy operation six national patents has been approved. The machine could be used for the materials for ABS,PVC,PE,PP,PC,PMMA plastic board plate , by which could thermoform the automatic upholstery, motorcycle decorator board, the shell of electric scooter, the shell of medical apparatus, the inner gallbladder of icebox, parts of bathroom,lanter,etc.1. the automatic loading system and automatic fetching system are available on special request.2. Max, mold height could be up to 650mm3. advantage of medium wave emitter: uniform heating ,strong penetration, perfect reflection performance and quick heating.

Machine details:

Main specification:

Model	IP1007/3	IP 1510/3	IP 1513/3	IP2010/3	IP 2510/3	IP2515/3	IP 2520/3	IP 3020/3
Forming area (mm×mm)	1000×700	1500×1000	1500×1300	2000×1000	2500×1000	2500×1500	2500×2000	3000×2000
Highness of forming (mm)	300	300	300	300	300	300	300	300
Total electrical connection (kw)	Approx.42	Approx.74	Approx.97	Approx.105	Approx.128	Approx.181	Approx.232	Approx.277
Length (mm)	1800	2400	2400	2900	3400	3400	3400	3900
Width (mm)	2800	3300	3900	3300	3300	4300	5300	5300
Height (mm)	2600	2600	2600	2600	2600	2600	2600	2600
Weight (kg)	3300	4300	4800	6000	7500	8100	10300	12500
