Premium Quality Gold Mill, Wet Pan Mill With CE Authentication
| Condition:New | Type:Gold Mill | Motor Type:AC Motor | Power(W):37000 |
| Capacity(t/h):5-10 | Place of Origin:Henan China (Mainland) | Brand Name:Zhongcheng | Model Number:1600A |
| Dimension(L*W*H):1600*500*200*500 | Weight:14.5t | Certification:ISO9001:2008 | Warranty:1 Year |
| After-sales Service Provided:Engineers available to service machinery overseas | Color:as your need | Mill diamter(mm):1600 | Feeding size:less than 3cm |
| Application:gold, zinc, lead, silver,etc | Speed(r/min):20-22 | Function:grinding and separation | Grinding method:wet and rolling |
| Spare parts:wear resistant | model:850-1600mm(grinding roller's diameter) | Roller material:manganese steel |

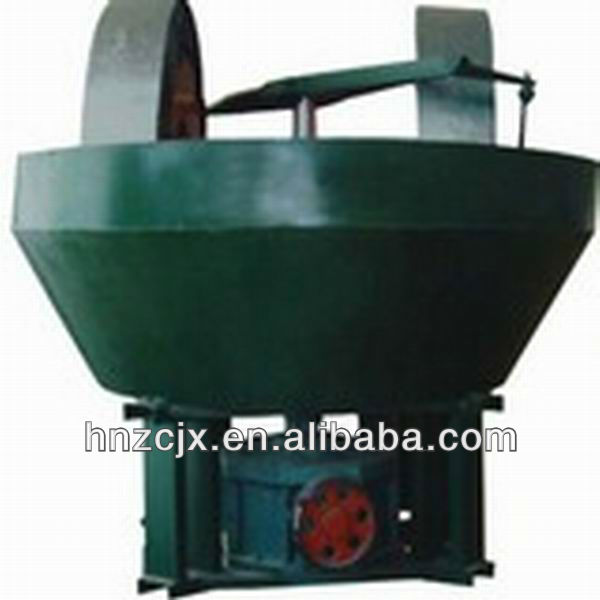

Premium Quality Gold Mill/Wet Pan Mill With CE Authentication
1. Usage of Gold mill, wet pan mill, vertical gold mill machine:
Gold mill machine is mainly used with gold, silver, lead, zinc, iron, molybdenum, copper, antimony mine, mine, all ball mill can choose wet grinding machine can be used.
2. Features of Gold mill, wet pan mill:
Gold mill machine mainly through the mixing of raw materials, rolling, crushing, rolling repeatedly to reach moisture equilibrium, the ratio of uniform, low gas content, to increase molding and molding quality, grind the material through the machine molding products,It has a high density, strength, and no porosity ratio. Energy efficient, high output, the product is used for iron ore tailings recovery process, not slag the loss, the effective resources can be fully utilized.
Gold grinding machine when the choice of gold sorting methods and process-1. gold grinding machine after the installation is completed to gold grinding machine groove bottom 5 kilograms of mercury begins normal operation. 2 each class receive once the Sands, the shift added to 1 kg of mercury to receive the grind at the end of the Sands and mercury, the mercury received Sheng gold equipment, with a relatively high density of red cloth mercury screwed out to the package, open the red cloth which left Sands. One kilogram of mercury each class started on it. Containing one is grasping the cloth of gold or grab the gold behind the blanket and put on the mercury board can receive the gold.
3. Main technical parameters of Gold mill, wet pan mill:
| Model | Specification (mm) | Feeding size | Speed(r/min) | Power (kw) | Weight (t) |
| 1600A | 1600*500*200*500+20 | Feeding size less than 3cm | 20-22 | 37 | 14.5 |
| 1500A | 1500*350*200*460+20 | 20-22 | 22 | 13.3 | |
| 1500B | 1500*350*150*460+20 | 20-22 | 22 | 12.3 | |
| 1500C | 1500*300*150*420+20 | 20-22 | 18.5 | 11.3 | |
| 1400A | 1400*250*150*350+20 | 16-18 | 18.5 | 8.5 | |
| 1400B | 1400*250*150*350+20 | 21-23 | 18.5 | 8.5 | |
| 1350A | 1350*250*150*350+20 | 16-18 | 18.5 | 8 | |
| 1350B | 1350*250*150*350+20 | 21-23 | 18.5 | 8 | |
| 1300A | 1300*250*150*350+20 | 16-18 | 15 | 7.5 | |
| 1300B | 1300*250*150*350+20 | 21-23 | 15 | 7.5 | |
| 1200A | 1200*220*80*270+20 | 17-19 | 7.5 | 5.5 | |
| 1200B | 1200*200*80*250+20 | 23-25 | 7.5 | 5.5 | |
| 1100A | 1100*200*80*250+20 | 17-19 | 7.5 | 5 | |
| 1100B | 1100*200*80*250+20 | 23-25 | 7.5 | 5 | |
| 1000 | 1000*200*80*250+20 | 13-15 | 5.5 | 4.5 |
| Packaging Detail:Export standard packing method to be water proof and rust proof.Load into the standard container. |
| Delivery Detail:5 days after receiving the deposit |
