It is suitable for forming and laying-off of leather, plastic cement, canvas, nylon, paper board,vacuum forming etc. - details see: https://www.machineto.com/precision-hydraulic-four-column-plane-cutting-machine-10265214

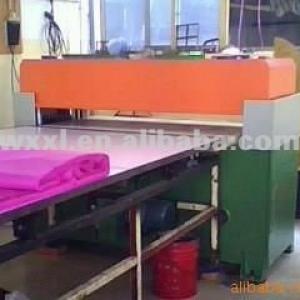

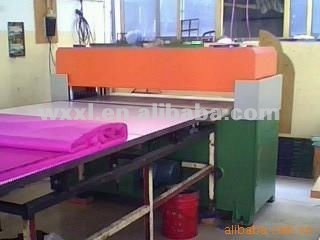

Brief introduction:

It is suitable for forming and laying-off of leather, plastic cement, canvas, nylon, paper board,vacuum forming,composite material,blister cotton,package,and various kinds of synthetic materials in one layer or numerous layers.

1.The guide for the hold-down plate moving up and down is near to the lead rails in two sides.The good guide effect ensures the parallelism of upper and lower working sides.

2.The double-hand operation ensures the operators safety.

3.The machine is equppied with dragging plate so that it is easy for operators to take out cutter mold and ensures the safety.

4.The compound bearing installed between the headstock and bearing seat does need any lubrication. No wearing.

5.Suitable for laying-off of wide and multi-layer materials.

Technical parameter:

Maximum blanking pressure: 300KN

Blanking speed: 0.10m/s

Stroke control range: 0-100mm

Range between upward and downward press plate: 60-150mm

Size of upward press plate:1600×500mm

Size of working board:1600×550mm

Motor power: 2.2KW

Dimension: 2000×700×130mm

Total weight:1400kg
