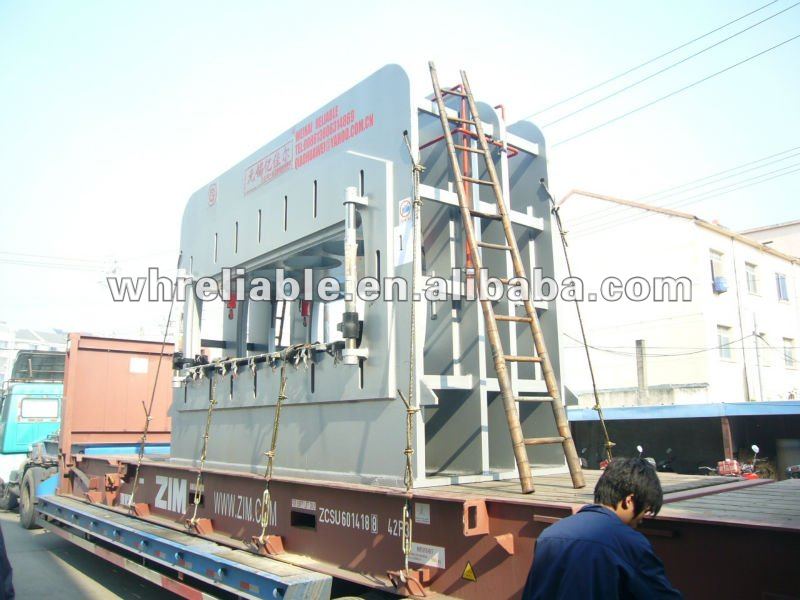

pre lam/flooring production/Melamined MDF production hot press
strong structure, easy operation, automatic running, scientific design - details see: https://www.machineto.com/pre-lam-flooring-production-melamined-mdf-production-hot-press-10345894
Condition:New | Type:Hot Press | Place of Origin:China (Mainland) | Brand Name:Reliable |
Model Number:SCL2400 | | | |
type | pressure | cyilnders | cylinder size | power | hot platen | net weight |
up | down |
NYJ-700 | 25Mpa | 6 pcs | Φ280mm | 22KW | 140mm | 100mm | 25t |
NYJ-1200 | 25Mpa | 6 pcs | Φ320mm | 22KW | 140mm | 100mm | 32t |
NYJ-1400 | 25Mpa | 6 pcs | Φ350mm | 22KW | 140mm | 120mm | 35t |
NYJ-1700 | 25Mpa | 6 pcs | Φ380mm | 22KW | 150mm | 120mm | 39t |
NYJ-2000 | 25Mpa | 6 pcs | Φ400mm | 22KW | 160mm | 120mm | 45t |
NYJ-2400 | 25Mpa | 8 pcs | Φ380mm | 22KW | 160mm | 120mm | 55t |
NYJ-2800 | 25Mpa | 8 pcs | Φ420mm | 22KW | 160mm | 120mm |
Hot pressboard temperature | | 0—250o |
Heat consumption (Kcal/h) | | |
Temperature difference | | ±1.5o |
Heating medium | | heating oil |
Closing speed(mm/s) | | 7(cm/s) |
Lifting speed(mm/s) | | 8 (cm/s) |
Control mode | | PLC Mitsubishi |
- daily production: 1000-1200 sheets
- cylinder: solid ram, with 0.3mm hard chromed
- hot platen: soild steel, drilled oil passage
- electronic parts: Simens, Mitsubishi
- 2nd oil circulation system: help to fasten oil circulation to get equal temperature on the platen
- auto-temperature control system: 4 sensors in up and low hot platen, which will connect with the control panel and electronic valves to control oil flow volume
- auto board input trolley will help to increase production and protect workers
- workshop design is available
- widely used in the PB/MDF lamination and flooring production
- also the automatic convey line is available
Packaging Detail:null packing |
Delivery Detail:30 days |
