1,stainless steel, 2,GMP standard, 3,Has a great relationsip with the characteristics of materials. - details see: https://www.machineto.com/powder-vacuum-conveyor-charging-machine-10282604

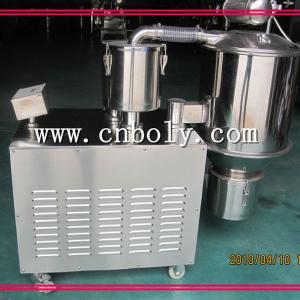

VacuumCharing Machine

Vacuum charing machineis a new product, which was developed by our company on the basis of widely absoring domestic and foreign similar products.Currently, it is the most advanced ,ideal and perfect vacuum conveying equipment of powder material, granular material, powder mixture.Vacuum charing machinecan automatically transport a variety of materials to the hoppers of packaging machines, injection molding machine, grinderetc,also,it can convey mixed material directly to the mixer (such as V-type mixer, two-dimensional mixer, three-dimensional mixeretc.), thereby reducing the labor intensity of workers and solving the feeding problem when the powder spillsetc.It is preferred equipment of the promotion of clean and civilized production which was chosen by the pharmaceutical factory, food factory through the "GMP"authentication.

Vacuum charing machine consists of vacuum pump(no oil, no water), stainless steel suction Tsui, transmission hose, PE filter (or 316L stainless steel filter), compressed air cleaning devices, pneumatic discharge door devices, vacuum hopper and feed automatic control devicesetc.The entire system designesreasonably and produces beautifully.

Vacuum charing machine is divided into discharing space and consecutive discharing, discharing space is conducive to lower investment cost of the equipment,and convenient to control the level , Consecutive discharing generally used in long-distance, large production of materials at the time of vacuum conveying. In most cases, we recommend the discharing space to users.

Technical Data:

Model	ZKS-1	ZKS-2	ZKS-3	ZKS-4	ZKS-5
Motor Power(kw)	1.5	2.2	3.0	5.5	4
Conveyoring capacity(kg/h)	400	600	1200	2000	3000

The capacity is tested by dry flour powder, and 80-120 mesh, proportion is 1g/cm3.

If you want to send inquriy to me, could you please tell me?

1 What material you want to convey?

2 What capacity you expect ? (kg/h)

3 What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...

(We only provide 3P, because our machines are all for industrial use,not for family.)

Then our communication will be more efficient.
