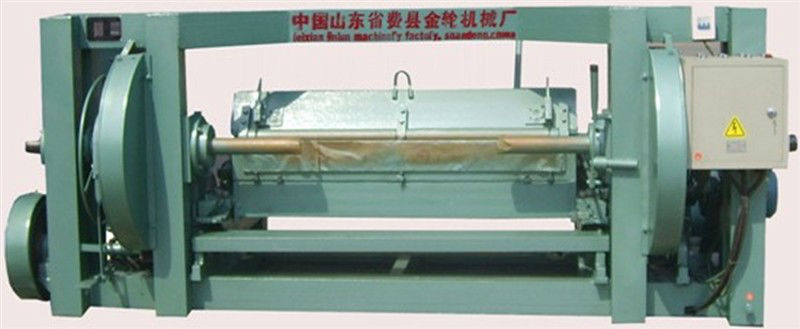

ShanDong Jinlun LXQ130A CNC Veneer Peeling Machine

Our company specializes in manufacturing woodworking machinery. We mainly produce press machine,veneer peeling lathe,drying machine and other woodworking machinery for plywood,block board,particle board,etc.

we can design and produce the whole plywood, block board , MDF or HDF hot press or production line as requested

(1)Advantages:

1.Layer stripping machine without clamper

2.Easy to operate

3.thickness is adjustable

4.Automatic control

(2).Application:

CNC Spindless Veneer Rotary Cutter/wood working machine /veneer rotary lathe , the professional equipment of veneer and plywood processing

(3). Main Features:

1).With Special roller treatment and high load setting, greatly improve life service.

2).Adopt double speed cutting, low speed with curved wood, easy to find circle with high efficiency cutting.

3).Can processing small diameter logs.

(4)Specifications:

Model	LXQ130A
Peeled Logs length	1300mm
Peeled Logs diameter	Φ700mm
Minimum diameter of leaving shaft	Φ80mm
Peeling thickness	0.4-3.6mm
Peeling knife specifications	1400*130*12.7mm
Main Motor	11/14KW
Fast-forward Motor	1.1KW
Clamping Motor	2.2KW
Equipment weight	about 1800KG
Spindle speed	58/87 r/min
Dimensions of Main frame	3300×1550×1220mm
Weight	4000 KG

We can supply a complete of plywood line, block board line, particle board line or MDF/HDF line.

Any question, please feel free to contact me!
