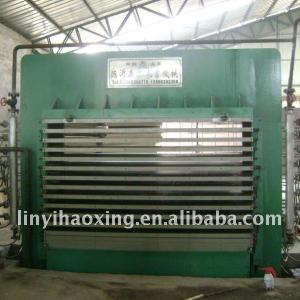

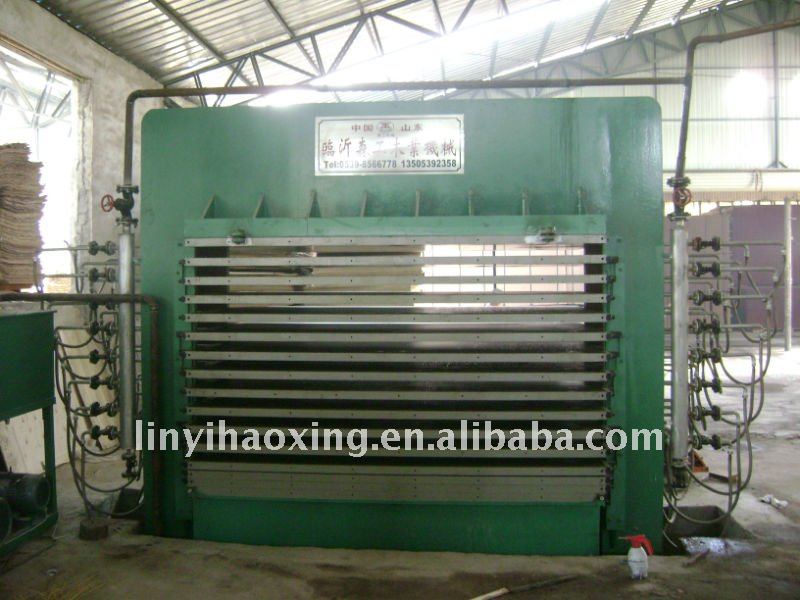

Plywood hot press
Hydraulic Hot Press, 1.Professional Manufactuer, 2.Durable and economic - details see: https://www.machineto.com/plywood-hot-press-10343637
Place of Origin:Shandong China (Mainland) | Brand Name:HX-HP | Model Number:HX-HP-011 | |
hot press machine
Model | BY22-4×8/40-10 |
Structure | Combination Frame |
Working Pressure | 400T |
Hot Platen Size | 2700*1370*42mm |
Cylinder No.& Diameter | 2unitsΦ320mm |
Separation between layers | 70mm |
Cylinder Stroke | 700mm |
No-load Closing Time | About 27s |
Hydraulic System | Microcomputer Manually/Automatic controlled |
Hydraulic System Pressure | 25MPa |
Main Motor | 11Kw |
Pressurized Motor | 5.5Kw |
Main Pump | Shanghai Aviation 250 Pump |
Pressurized Pump | 10ml/rev plunger pump |
Main Frame Thickness | 35,22,12mm |
Upper/Lower/Movable Crossbeam | 900,800,400mm |
Overall Dimensions | 3560*1370*3588mm |
Packaging Detail:standard exporting packing |
Delivery Detail:15 days after receive deposit |
