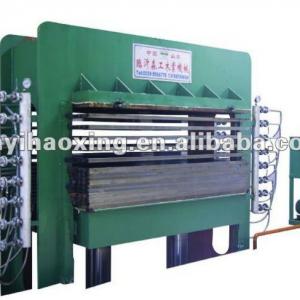

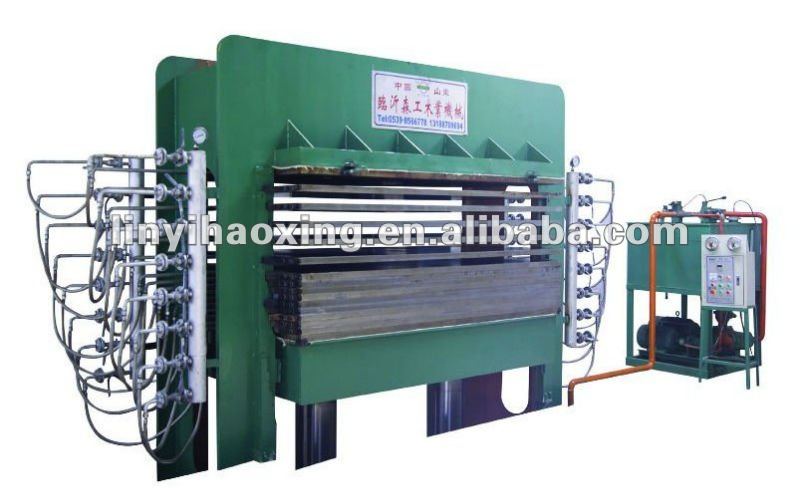

plywood factory Hot press

Hydraulic Hot Press, 1.Professional Manufactuer, 2.High Efficiency and Stability - details see: https://www.machineto.com/plywood-factory-hot-press-10343237
Place of Origin:Shandong China (Mainland)Brand Name:HX-HPModel Number:HX-HP-011
plywood factory Hot press
contact supplier for plywood factory Hot press


hot press machine

ModelBY22-4×8/40-10
StructureCombination Frame
Working Pressure400T
Hot Platen Size2700*1370*42mm
Cylinder No.& Diameter2unitsΦ320mm
Separation between layers70mm
Cylinder Stroke700mm
No-load Closing TimeAbout 27s
Hydraulic SystemMicrocomputer Manually/Automatic controlled
Hydraulic System Pressure25MPa
Main Motor11Kw
Pressurized Motor5.5Kw
Main PumpShanghai Aviation 250 Pump
Pressurized Pump10ml/rev plunger pump
Main Frame Thickness35,22,12mm
Upper/Lower/Movable Crossbeam900,800,400mm
Overall Dimensions3560*1370*3588mm
plywood factory Hot press
Packaging Detail:standard exporting packing
Delivery Detail:15 days after receive deposit
