1)vacuum auto loader, 2)stainless steel material insides, 3)operation controlled by computer, 4)independent dust filter - details see: https://www.machineto.com/plastic-vacuum-auto-loader-10338180

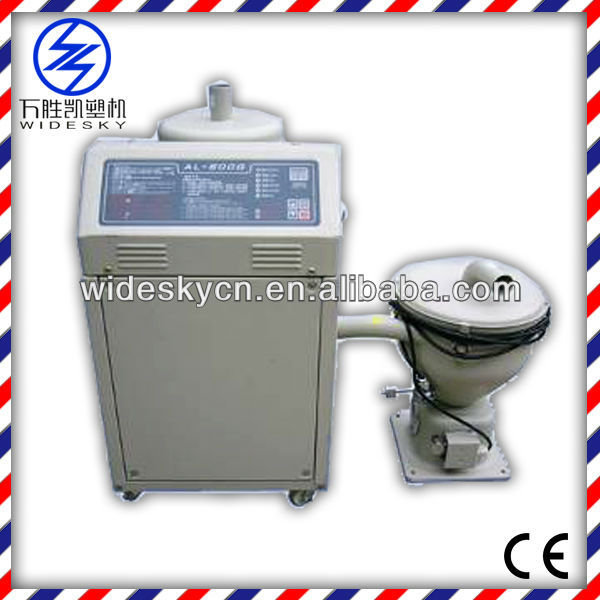

Vacuum Auto Loader

Features

1) Main engine and the material hopper are designed separately
2) Operation controlled by Micro Trio computer
3) Equipped with an independent dust filter
4) Equipped muffler reduces operational noise
5) Stainless steel material hopper is light weight, durable and easy to clean

6) Separate control box for easy maintenance
7) Auto-buzzer will give alarm when lacking material
8) Auto-protection device protects motor against overloading

specification

Model		AL-300G	AL-400G	AL-700G	AL-800G	AL-880G	AL-880G
Motor	Type	Carbon brush	Induction	Carbon brush	Induction	Induction	Induction
	Specification	1*1.1KW	3*1.1KW	1*1.1KW	3*1.1KW	3*1.5KW	3*2.2KW
Conveying capacity		350KG/H	350KG/H	350KG/H	400KG/H	550KG/H	550KG/H
Loading capacity		6-8M	6-8M	6-8M	8-10M	8-10M	8-10M
Static distance		1500mm/H2O	1500mm/H2O	1500mm/H2O	1800mm/H20	2400mm/H20	2400mm/H20
Reservoir volume		7.5L	7.5L	7.5L	7.5L	10L	12L
Conveying tube inner dim		38	38	38	38	38	38
Dimensions	Main frame			370*3.00*550	46*38*70	46*38*70	46*38*70
	Hopper	40*36*60cm	40*36*60cm	40*30*44cm	40*30*44cm	40*30*50cm	40*30*50cm
Net Weight		29KG	35KG	70KG	74KG	80KG	80KG
