1.Specilized in blow molding machine21years, 2.Deflashing device, 3.Famous brand components, 4.CE;ISO9001;SGS, 5.1year guarantee - details see: https://www.machineto.com/plastic-blowing-machine-chemical-packing-machine-10282658

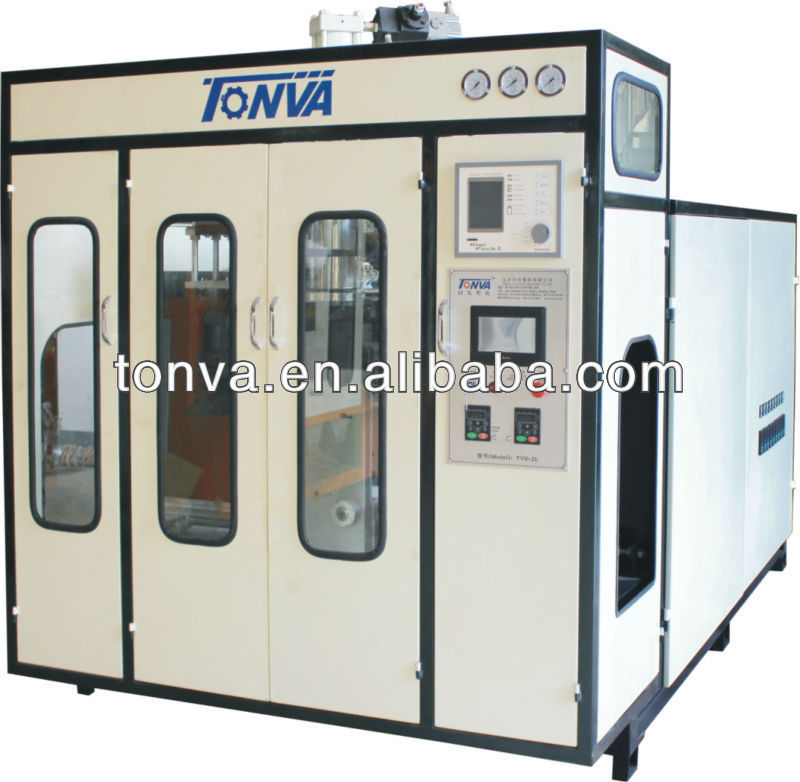

TONVA TVD-2L model plastic bottle manufacturing machines:

Products display:

Main Characteristic:

1. Two stations, single layer, 65mm screw, 15kw motor, PE / PP etc.

2. Power supply: 380VAC, 50Hz (depending on client's country).

3. Die Head for choosing:

One head (1L-2L): 2L---around 300 bottles per hour

Two head (500ML-1L): 1L---around 800 bottles per hour

Three head ( 200ML to 500ML): 500ml---around 1500 bottles per hour

Four head (up to 200ml): 200ml---around 2500 bottles per hour

4. Center Distance: Two Die head: 180mm, Three Die head: 100mm

Four Die head: 60mm

5. Deflashing system: Neck/ handle/ bottom deflashing

6. MOOG 100 Points Parison Controller (Optional)

Deflashing device:

A. one desing of deflashing(rolling knife)

B. another desing of deflashing(punching knife)

C. Bottom cutting

Basic working theory:

This kind of blow molding machine is using PLC control system, operating manual in English, pneumatic operated, clamping by hydraulic cylinders actuated by pneumatic primary cylinders. Moreover, it equips with deflashing system, resulting in saving time and manual cost for clients.

Our machine adopts famous brand in most component parts, almost fromGERMANY, JAPAN, FRANCE, TAIWAN

Electirc system:

PLC control:

Technical parameters:

Item	Unit	TVD-2L
Raw material	-------	PE/PP
Diameter of screw stem	mm	65
L/D of screw stem	-------	25:1
Extrusion power	Kw	15
Heating power	Kw	13
Heating zones	piece	6
Plasticizing capacity	kg	60
Number of moulds	set	2
Mould thickness scope	mm	140-170
Open stroke	mm	150
Mould length	mm	120-320
Max. clamping force	KN	50
Pressure of air source	Mpa	0.6
Air consumption	m3/min	0.6
Water consumption	m3/h	1.2
Weight	T	3.2
Dimension(L×W×H)	m	2.9×2×1.8

Assemble plant:

After-sale service:

1.Instruction for Installation and Debugging

Before delivery, TONVA takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.

TONVA also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of TONVA, provides the engineer with round-trip tickets, accommodation, vehicle and $60 per day salary.

2. User Training

Before delivery, TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.

3. Warranty Period

The warranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.

Note:Information listed above are for reference only, the production line can be designed according to customer's requirements.
