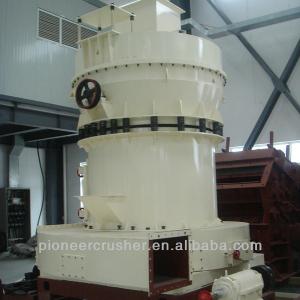

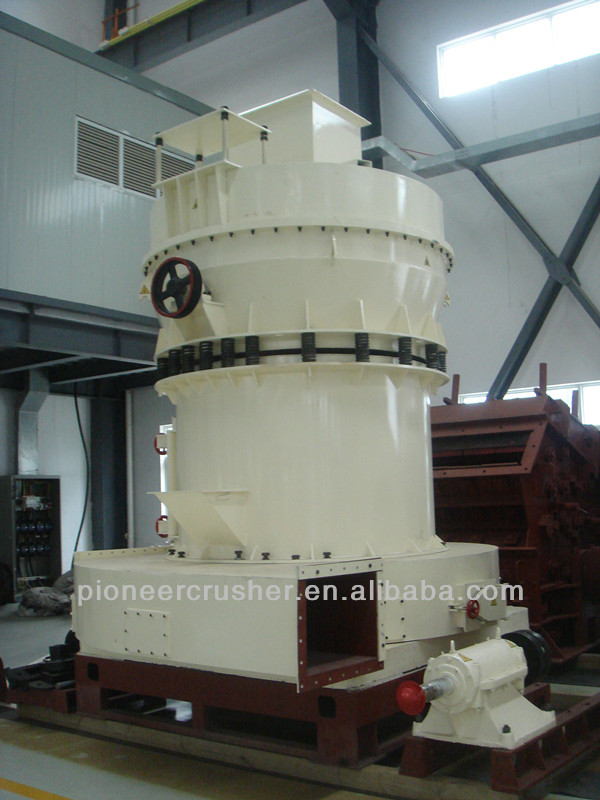

Pioneer Raymond Mill

1.The granularity of finished product is controlled between 80 and 425 meshes, 2. can mill barite, limestone, ceramic and slag - details see: https://www.machineto.com/pioneer-raymond-mill-10314563

Condition:New	Type:Raymond Mill	Capacity(t/h):1.2-4	Place of Origin:China (Mainland)
Brand Name:Pioneer	Model Number:YGM85	Color:White	style:Raymond
products:80-245mesh

Raymond Mill

Raymond mill is a new type grinding machine and it opens a new era of high efficiency and low energy consumption. High pressure suspension grinder is widely used in mining, metallurgy, chemical engineering, building materials to grind finely more than 280 kinds of material with mohs hardness less than 9.3 and the moisture content below 6%, such as barite, limestone, ceramic and slag. The granularity of finished product is controle between 80-245 meshes( the minimum is 1000 meshes). And it can produce 30-80 mesh coarse powder by adding some special equipment.

Main Technical Parameter:

Model	Roller Number	Roller Size(L*H) (mm)	Grind Ring Inner Diameter ,Height and Length(mm)	Max Feed Size (mm)	Output Size (mm)	Capacity (t/h)	Power (kw)	Overall Dimension (mm)
YGM65	3	210×150	650×150	15	0.613-0.033	0.4-1.8	15	4100×3300×4500
YGM75	3	260×150	780×150	15	0.613-0.033	1-3	18.5	4300×3500×5100
YGM85	3	270×140	830×*150	20	0.613-0.033	1.2-4	22	5300×4100×5200
YGM85B	3	270×140	830×150	20	0.613-0.03	1.2-3.5	22	5300×4100×5200
YGM95	4	310×170	950×170	25	0.613-0.033	2.1-5.6	37	7100×5900×7900
YGM130	5	410×210	1280×210	30	0.613-0.033	2.5-9.5	75	7900×8000×9700
YGM160	6	440×270	1600×270	35	1.9-0.045	8-16	132	12550× 5700 ×8355
