Bentonite rotary dryer, *For ore industry, *For cement industry, *For slag industry - details see: https://www.machineto.com/photos-supply-electric-brewer-spent-grainrotary-dryer-10287626

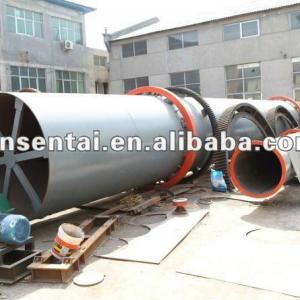

[Photos] Supply brewer spent grainrotary dryer

Description of electric brewer spent grainrotary dryer rotary dryer
electric rotary dryer (cylinder drier)is shaped as a horizontally inclined rotating cylinder. Material is fed at feed port and discharged at the output port . In direct-type electric rotary dryer (cylinder drier), hot air move through the cylinder in direct contact with the material, either with or against the direction of its flow. The electric rotary dryer (cylinder drier) is equipped with scatters, which lift the materials and make materials touched the hot air completely .

Usage Of electric brewer spent grainrotary dryer rotary dryer
electric rotary dryer is used for drying materials with a certain humidity or granularityin milling of food ,chemical ,ores, building materials, metallurgy and chemical industry. electric rotary dryer has a strong adaptability of materials and it can dry various materials. The operation is very simple and liable. So this kind of electric rotary dryer has playing important role in various industries . electric rotary dryer is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. electric rotary dryer can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.

Features of ST electric brewer spent grainrotary dryer rotary dryer :

1. Our electric rotary dryer is designed with anti-sticky drum-wall and assembled material-lifting board.

2.This electric rotary dryer is divided into secondary-granulating section, balling section, polishing section and drying section, etc. What worth mentioning is that our electric rotary dryer features convenient installation and transportation as a result of its flange connection.

3. This large sized electric rotary dryer is primarily composed of vibrating feeder, heating furnace, drying device, and air intake and air outlet device, and more.
4. Our electric rotary dryer has the features of low noise, little pollution and good drying effect.

Working principle of electric brewer spent grainrotary dryer rotary dryer
electric rotary dryer is consist of heating device,feeding device ,transport device,discharge device,dust extraction device and other connecting parts . For the installation process , the electric rotary dryer should slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the electric rotary dryer under gravity . Material to be dried enters the electric rotary dryer , and as the electric rotary dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the electric rotary dryer . When the material gets high enough to roll back off the fins, it falls back down to the bottom of the electric rotary dryer , passing through the hot gas stream as it falls.

Technology data of electric brewer spent grainrotary dryer rotary dryer

Model (mm)	Obliquity(%)	Rotation speed (r/min)	Feeding temperature (degree)	Power (kw)	Capacity(t/h)	Weight (t)
Ø600x6000	3-5	3-8	<=700	3	0.5-1.5	2.9
Ø800x8000	3-5	3-8	<=700	4	0.8-2.0	3.5
Ø800x10000	3-5	3-8	<=700	4	0.8-2.5	4.5
Ø1000x10000	3-5	3-8	<=700	5.5	1.0-3.5	5.6
Ø1200x10000	3-5	3-8	<=700	7.5	1.8-5	14.5
Ø1200x12000	3-5	3-8	<=700	11	2-6	14.8
Ø1500x12000	3-5	2-6	<=800	15	3.5-9	17.8
Ø1800x12000	3-5	2-6	<=800	18	5-12	25
Ø2200x12000	3-5	1.5-6	<=800	18.5	6-15	33
Ø2200x18000	3-5	1.5-6	<=800	22	10-18	53.8
Ø2200x20000	3-5	1.5-6	<=800	30	12-20	56
Ø2400x20000	3-5	1.5-5	<=800	37	18-30	60
Ø3000x20000	3-5	1.5-5	<=800	55	25-35	78
Ø3000x25000	3-5	1.5-5	<=800	75	32-40	104.9
