[Photos]hot selling 2.2m*18m coal dryer in Zhengzhou, China(0086-18638219165)

Coal dryer machine manufacturer, 1 direct manufacturer, factory price, 2 CE, ISO certification, 3 history of more than 30 years - details see: https://www.machineto.com/photos-hot-selling-2-2m-18m-coal-dryer-in-zhengzhou-china-0086-18638219165-10295035
Condition:NewType:Rotary Drying Equipment,coal dryerPlace of Origin:Henan China (Mainland)Brand Name:Zhengke
Model Number:KHZD2218 coal dryerVoltage:380vPower(W):37kwDimension(L*W*H):18*3.6*3.6m
Weight:44tCertification:CE, ISOWarranty:1 yearCapacity:20-24t/h
Length:18mDiameter:2.2mBusiness type:manufacturer, supplierMaterial:carbon steel
Heat source:coal, gas, electricityHeating temperature:300-500 centigrade degreeHeating medium:hot airThickness of cylinder:18mm
Product Type:coal, sludge, sand, gypsum, etc
[Photos]hot selling 2.2m*18m coal dryer in Zhengzhou, China(0086-18638219165)
contact supplier for [Photos]hot selling 2.2m*18m coal dryer in Zhengzhou, China(0086-18638219165)

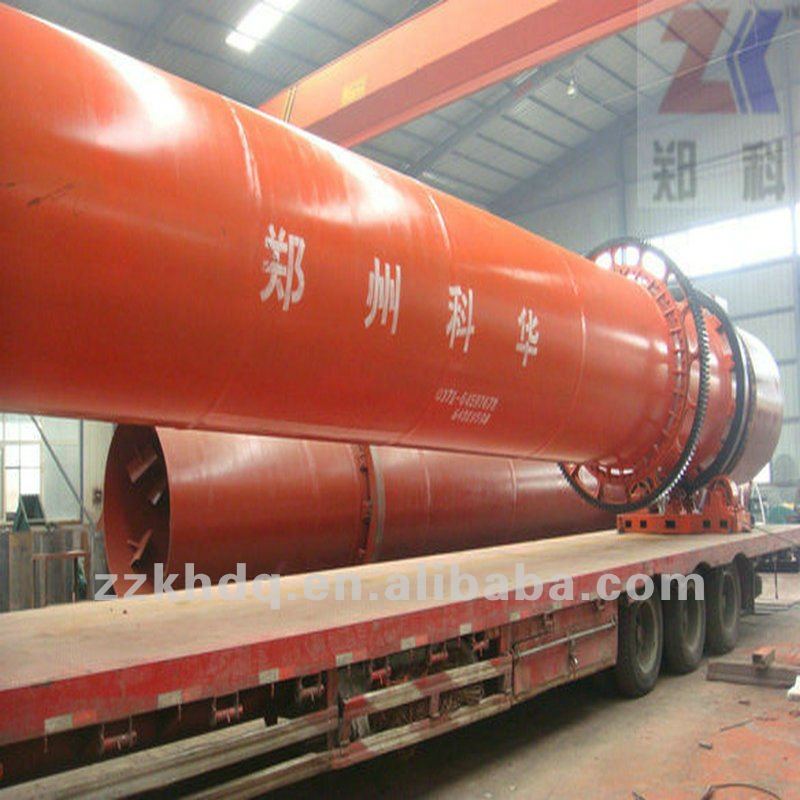

[Photos]hot selling 2.2m*18m coal dryer in Zhengzhou, China

1Components ofcoal dryer

All the equipments of coal dryer consist of feeding system, heating system, transmission system, driving system, discharging system, dust catching system.

2Application ofcoal dryer

Coal dryer is a set of equipment to process mass materials. Due to reliable performance, wide adaptability range, low consumption, high handling capacity, coal dryer is widely used in construction, metallurgy, food, chemical, coal, pharmaceutical and mining industry. Coal dryer is generally applicable for granular materials, materials of high moisture, viscous and pasty materials by mixed with other materials. Coal dryer has the advantages of high capacity, wide application range, small flow resistance, convenient operation.

3Structure ofcoal dryer

Coal dryer is mainly composed of cylinder, front ring, back ring, gear, supporting roller, dragging roller, discharging device, lifting board, reducer, motor, hot air channel, loading chute, furnace. We can also design coal gas producer, combustion chamber, bucket elevator, belt conveyor, constant feeder, cyclone dust catcher, draft fan.

4Principle ofcoal dryer

Wet materials are sent into hopper by belt conveyor or bucket elevator, then to the drum by feeder. The gradient of loading chute must be bigger than the cylinder to make the materials move smoothly. The cylinder is installed at an angle of about 3-5. Materials move from upper end to lower end, while heating medium moves from the opposite direction or the same. During this process, moisture inside the materials gets vaporized. The waste gas is released by the draft fan at the end of the drum. Some lifting boards are fixed on the inner wall of the cylinder. They elevate and scatter the materials repeatedly to accelerate the efficiency of drying. At last, the hot air is released into atmosphere through dust catcher.

[Photos]hot selling 2.2m*18m coal dryer in Zhengzhou, China(0086-18638219165)
Packaging Detail:nude coal dryer in export container
Delivery Detail:20 days after prepayment
